CB51-E

CB51-E

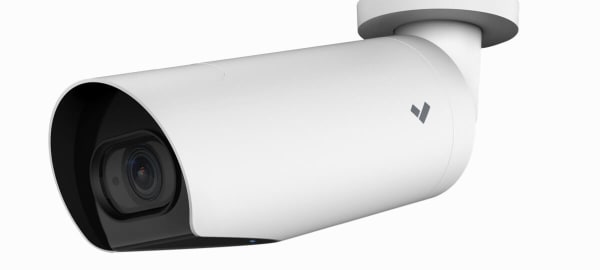

High resolution, general-purpose bullet camera with 3x optical zoom and intelligent edge-based analytics.
  • 5 MP
    Image Resolution
  • 3 X
    Optical Zoom
  • IP67
    and IK10 Rated
  • 30 M
    IR Range
Start a Free Trial

Product Specifications

  • Image Sensor
    1/2.8″ Progressive CMOS
  • Dimensions
    Ø: 81 L: 263mm with mountplate
  • Image Resolution
    5MP / 2688 x 1944
  • IR Range
    30m / 98ft
  • Lens Type
    Motorized Optical Zoom
  • Day/Night
    IR-cut filter for day & night function
  • Focus
    N/A
  • Focal Length
    2.8-8mm
  • Aperture
    F1.3 - F2.4
  • Connectivity
    RJ45 cable connector for Network/PoE connection
  • Field of View
    41° - 95° Horizontal
    31° - 59° Vertical
    50° - 105° Diagonal
  • Power Input
    IEEE 802.3af PoE
    IEEE 802.3at PoE - Extended temperature range
  • Iris
    P-Iris
  • Power Consumption
    12W
    20W - Extended temperature range
  • Weight
    1024g / 36.12oz
  • Certifications
    FCC, IP67, IK10 vandal resistance, IEC60950-1
  • Operating Temperature
    -20°C ~ 50°C (-4°F~ 122°F), PoE 802.3af
    -40°C ~ 50°C (-40°F~ 122°F), PoE 802.3at
  • Humidity
    90%
  • Included Accessories
    Quick installation guide, screw packs, mount plate, 2 mounting templates, water-proof connectors, conduit adapter, junction box adapter, T8, T25 hand tool
  • LED Indicator
    System power and status indicator

Accessory List

  • INJ-POE-PLUS 802.3at PoE Injector

    Power over Ethernet (PoE) injector for powering Verkada cameras from a non-PoE enabled network connection

  • ACC-MNT-9 Verkada Pole Mount, 2nd Generation

    Attaches ACC-MNT-2 or ACC-MNT-3 to a pole. Supports Verkada's Bullet Series.
