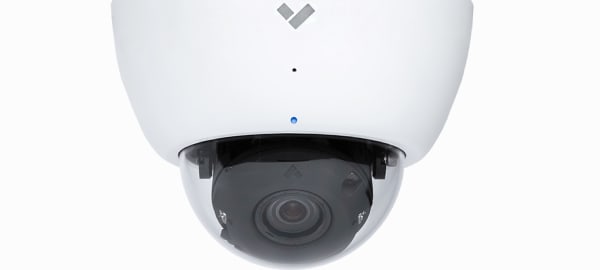

D30 Dome

Durable and versatile, built to withstand high-traffic areas.

Product Specifications

Image Sensor
1/2.8″ Progressive CMOS
Image Resolution
2048x1536 (3MP)
Lens Type
Zoom
Focal Length
f = 3 - 9 mm
Aperture
F1.2 - F2.3
Iris
P-iris
Field of View
41° - 86° Horizontal
31° - 64° Vertical
51° - 113° Diagonal
Shutter Speed
1/5 sec. to 1/16000 sec.
Day/Night
IR-cut filter for day & night function
IR Range
98 feet / 30 meters
LED Indicator
System power and status indicator
Connectors
RJ-45 cable connector for Network/PoE connection
Power Input
IEEE 802.3af PoE
Power Consumption
11W
Dimensions
Ø 145mm / 5.7in, H: 106mm / 4.2in
Weight
503g / 17.7oz
Certifications
IK08 vandal resistance, FCC, ICES, IEC60950-1
Operating Temperature
-14°F - 122°F (-10°C - 50°C)
Humidity
90%
Included Accessories
Setup guide, T10 security Torx screwdriver, screw pack, mounting template

ACC-MNT-1 Pendant Cap Mounting Adapter Kit
Threaded cap that attaches to the rear of Camera. Use with Verkada ACC-MNT-2 mounting arm Built-in 3/4” NPT female and 1.5” NPT male piping connector.
ACC-MNT-2 Mounting Arm Kit
Wall mounted extender arm. Use with Verkada ACC-MNT-1 or ACC-MNT-8 pendant caps.
ACC-MNT-3 Wall Mounted L-Shaped Bracket Kit
Compact bracket for mounting camera perpendicular to wall.
ACC-MNT-4 Pole Mount Adapter Kit
Attaches ACC-MNT-2 or ACC-MNT-3 to a pole.
INJ-POE-PLUS 802.3at PoE Injector
Power over Ethernet (PoE) injector for powering Verkada cameras from a non-PoE enabled network connection

30-day trial includes camera and full access to management platform.
