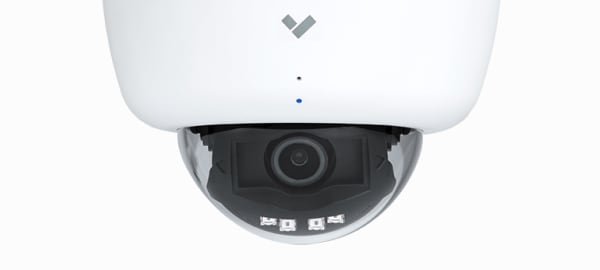

D40 Dome

D40 Dome

Enhanced resolution and a small form factor that fits in any space.
  • 5 MP
    Image Resolution
  • 128°
    Diagonal Field of View
  • 15 M
    IR Range

Product Specifications

  • Image Sensor
    1/2.7" Progressive CMOS
  • Image Resolution
    2688 x 1944 (5MP)
  • Lens Type
    Fixed
  • Focus
    Fixed
  • Focal Length
    f = 2.8mm
  • Aperture
    F1.6
  • Iris
    Fixed
  • Field of View
    97° Horizontal
    71° Vertical
    128° Diagonal
  • Shutter Speed
    1/5 sec. to 1/16000 sec
  • Day/Night
    IR-cut filter for day & night function
  • IR Range
    49 feet / 15 meters
  • LED Indicator
    System power and status indicator
  • Connectors
    RJ-45 cable connector for Network/PoE connection
  • Power Input
    IEEE 802.3af PoE
  • Power Consumption
    6W
  • Dimensions
    Ø 100mm / 3.94in, H: 63mm / 2.48in
  • Weight
    284.6g / 10.0oz
  • Safety Certifications
    IK08 vandal resistance, FCC, ICES, IEC62368
  • Operating Temperature
    -10°C - 50°C (14°F - 122°F)
  • Humidity
    90%
  • Included Accessories
    Setup guide, screw pack

Accessory List

  • INJ-POE-PLUS 802.3at PoE Injector

    Power over Ethernet (PoE) injector for powering Verkada cameras from a non-PoE enabled network connection
