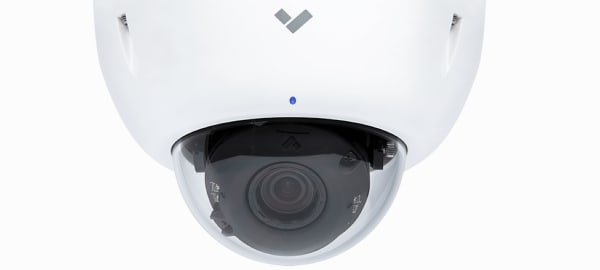

D50 Dome

D50 Dome

Top-of-the-line durability, designed to perform in the toughest conditions.
  • 3 MP
    Image Resolution
  • 3 X
    Optical Zoom
  • 30 M
    IR Range

Product Specifications

  • Image Sensor
    1/2.8″ Progressive CMOS
  • Image Resolution
    2048x1536 (3MP)
  • Lens Type
    Zoom
  • Focal Length
    f = 3 - 9 mm
  • Aperture
    F1.2 - F2.3
  • Iris
    P-iris
  • Field of View
    41° - 86° Horizontal
    31° - 64° Vertical
    51° - 113° Diagonal
  • Shutter Speed
    1/5 sec. to 1/16000 sec.
  • Day/Night
    IR-cut filter for day & night function
  • IR Range
    98 feet / 30 meters
  • LED Indicator
    System power and status indicator
  • Connectors
    RJ-45 cable connector for Network/PoE connection
  • Power Input
    IEEE 802.3af PoE
    IEEE 802.3at PoE - Extended temperature range
  • Power Consumption
    12W
    20W - Extended temperature range
  • Dimensions
    Ø 155mm / 6.1in, H: 111mm / 4.37in with mount plate Ø 155mm / 6.1in, H: 105mm / 4.13in without mount plate
  • Weight
    814g - Camera
    187g - Mount plate
  • Certifications
    FCC, IP67, IK10 vandal resistance, IEC60950-1, ICES
  • Operating Temperature
    -20°C - 50°C (-4°F - 122°F), PoE 802.3af
    -40°C - 50°C (-40°F - 122°F), PoE 802.3at
  • Humidity
    90%
  • Included Accessories
    Quick installation guide, screw pack, alignment sticker, desiccant bag, water-proof connectors, pole mount, conduit adapter

Accessory List

  • ACC-MNT-1 Pendant Cap Mounting Adapter Kit

    Threaded cap that attaches to the rear of Camera. Use with Verkada ACC-MNT-2 mounting arm Built-in 3/4” NPT female and 1.5” NPT male piping connector.

  • ACC-MNT-2 Mounting Arm Kit

    Wall mounted extender arm. Use with Verkada ACC-MNT-1 or ACC-MNT-8 pendant caps.

  • ACC-MNT-3 Wall Mounted L-Shaped Bracket Kit

    Compact bracket for mounting camera perpendicular to wall.

  • ACC-MNT-4 Pole Mount Adapter Kit

    Attaches ACC-MNT-2 or ACC-MNT-3 to a pole.

  • INJ-POE-PLUS 802.3at PoE Injector

    Power over Ethernet (PoE) injector for powering Verkada cameras from a non-PoE enabled network connection
