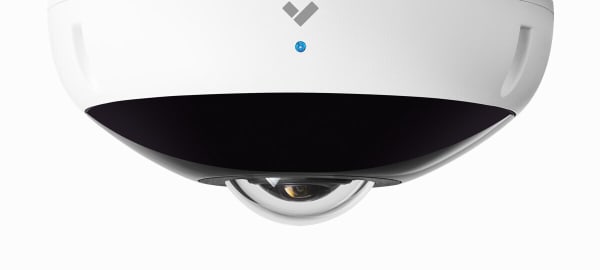

D80 Fisheye

D80 Fisheye

Panoramic views for seamless, 180° coverage in any environment.
  • 12 MP
    Image Resolution
  • 180
    Field of View
  • 20 M
    IR Range

Product Specifications

  • Image Sensor
    1/1.7″ Progressive CMOS
  • Dimensions
    With Mount Plate
    Diameter: 155 mm / 6.1 in
    Height: 74.5 mm / 2.84 in

    Without Mount Plate
    Diameter: 155 mm / 6.1 in
    Height: 68 mm / 2.67 in
  • Image Resolution
    12 MP (4000 x 3000)
  • IR Range
    20 m / 65 ft
  • Lens Type
    Fixed
  • Day/Night
    IR-cut filter for day & night function
  • Focus
    Fixed
  • Focal Length
    1.29mm
  • Aperture
    F2.2
  • Connectivity
    1Gb RJ-45 cable connector for Network/PoE connection
  • Field of View
    180° Horizontal
    180° Vertical
    180° Diagonal
  • Power Input
    IEEE 802.3af PoE
    IEEE 802.3at PoE+ - Extended temperature range
  • Iris
    Fixed
  • Power Consumption
    13W
    24 W - Extended Temperature Range
  • Weight
    816 g / 28.8 oz - Camera
    187 g / 6.6 oz - Mount Plate
  • Certifications
    IP66, IK10 vandal resistance, FCC, ICES, IEC62368
  • Operating Temperature
    -20°C - 50°C / -4°F - 122°F, PoE 802.3af
    -40°C - 50°C / -40°F - 122°F, PoE 802.3at
  • Humidity
    90%
  • Included Accessories
    Setup guide, T10 security Torx screwdriver, screw pack, mounting template, desiccant bag, water-proof connectors, pole mount straps, conduit adapter
  • LED Indicator
    System power and status indicator

Accessory List

  • ACC-MNT-2 Mounting Arm Kit

    Wall mounted extender arm. Use with Verkada ACC-MNT-1 or ACC-MNT-8 pendant caps.

  • ACC-MNT-3 Wall Mounted L-Shaped Bracket Kit

    Compact bracket for mounting camera perpendicular to wall.

  • ACC-MNT-4 Pole Mount Adapter Kit

    Attaches ACC-MNT-2 or ACC-MNT-3 to a pole.

  • INJ-POE-PLUS 802.3at PoE Injector

    Power over Ethernet (PoE) injector for powering Verkada cameras from a non-PoE enabled network connection

  • ACC-MNT-7 Angle Mount Kit

    30 degree angled mount for improved field of view.

  • ACC-MNT-8 Pendant Cap Mount Kit

    Threaded cap that attaches to the rear of Camera. Use with Verkada ACC-MNT-2 mounting arm Built-in 3/4” NPT female and 1.5” NPT male piping connector.
