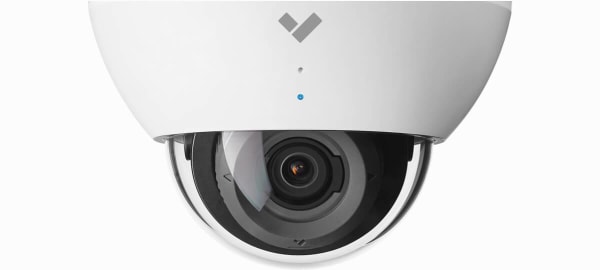

CD52 Dome

CD52 Dome

High resolution, general purpose indoor dome with 3x optical zoom and intelligent edge-based video analytics.
  • 5 MP
    Image Resolution
  • 3 X
    Optical Zoom
  • 30 M
    IR Range

Product Specifications

  • Image Sensor
    1/2.8″ Progressive CMOS
  • Dimensions
    Ø: 146mm / 5.75in, H: 104.3mm / 4.11in with mount plate
    Ø: 146mm / 5.75in, H: 99.8mm / 3.93in without mount plate
  • Image Resolution*
    5MP / 2688 x 1944
  • IR Range
    30m / 98ft
  • Onboard Storage
    From 256GB to 2TB
  • Lens Type
  • Day/Night
    IR-cut filter for day & night function
  • Focus
  • Focal Length
  • Aperture
    F1.3 - F2.4
  • Connectivity
    RJ-45 cable connector for Network/PoE connection
  • Field of View
    38° to 105° Horizontal
    29° to 77° Vertical
    48° to 126° Diagonal
  • Power Input
    IEEE 802.3af PoE
  • Iris
  • Power Consumption
  • Weight
    Camera: 764g / 26.95oz
    Mountplate: 143g / 5.04oz
  • Certifications
  • Operating Temperature
    -10°C - 50°C / 14°F - 122°F
  • Humidity
  • Included Accessories
    Setup guide, T10 security Torx screwdriver, screw pack, mounting template
  • LED Indicator
    System power and status indicator
*All of our cameras record footage in adaptive quality. Learn More

Accessory List

  • ACC-MNT-2 Mounting Arm Kit

    Wall mounted extender arm. Use with Verkada ACC-MNT-1 or ACC-MNT-8 pendant caps.

  • ACC-MNT-3 Wall Mounted L-Shaped Bracket Kit

    Compact bracket for mounting camera perpendicular to wall.

  • ACC-MNT-4 Pole Mount Adapter Kit

    Attaches ACC-MNT-2 or ACC-MNT-3 to a pole.

  • INJ-POE-PLUS 802.3at PoE Injector

    Power over Ethernet (PoE) injector for powering Verkada cameras from a non-PoE enabled network connection

  • ACC-MNT-7 Angle Mount Kit

    30 degree angled mount for improved field of view.

  • ACC-MNT-8 Pendant Cap Mount Kit

    Threaded cap that attaches to the rear of Camera. Use with Verkada ACC-MNT-2 mounting arm Built-in 3/4” NPT female and 1.5” NPT male piping connector.

  • ACC-MNT-9 Verkada Pole Mount, 2nd Generation

    Attaches ACC-MNT-2 or ACC-MNT-3 to a pole. Supports Verkada's Bullet Series.

  • ACC-MNT-10 Corner Mount

    Versatile bracket for mounting a range of accessories and cameras on corners.
