Fisheye

Panoramic views for seamless, 180° coverage in any environment.
Get Trial Camera See Live Camera

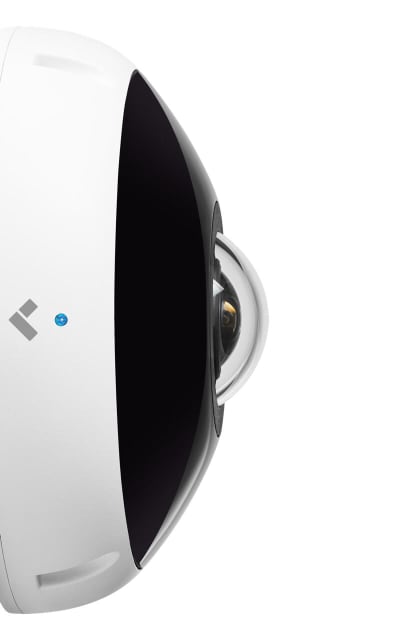

D80 Fisheye

The D80 Fisheye captures footage in a dynamic panoramic 180°, with options for wide-viewing angles or breaking down any area into quadrants. Capable of being mounted inside or outside, this camera is suitable for any number of surveillance needs.
  • 12 MP
    Image Resolution
  • 180°
    Field of View
  • 20 M
    IR Range

Product Specifications

  • Image Sensor
    1/1.7" Progressive CMOS
  • Image Resolution
    4000x3000 (12MP)
  • Lens Type
    Fixed
  • Focus
    Fixed
  • Focal Length
    f = 1.29mm
  • Aperture
    F2.2
  • Iris
    Fixed
  • Horizontal Field of View
    180°
  • Vertical Field of View
    180°
  • Diagonal Field of View
    180°
  • Shutter Speed
    1/5 sec. to 1/16000 sec
  • Day/Night
    IR-cut filter for day & night function
  • IR Range
    20 meters in low light conditions
  • LED Indicator
    System power and status indicator
  • Connectors
    RJ-45 cable connector for Network/PoE connection
  • Power Input
    IEEE 802.3af PoE, IEEE 802.3at PoE - Extended Temperature Range
  • Power Consumption
    13W, 24W - Extended Temperature Range
  • Dimensions
    Diameter: 155mm / 6.10in; Height: 68mm / 2.67in (without mount plate); Height: 74.5mm / 2.93in (with mount plate)
  • Weight
    Camera: 816g / 28.8oz; Mount plate: 187g / 6.6oz
  • Safety Certifications
    IP66, IK10 vandal resistance, FCC, ICES, IEC62368
  • Operating Temperature
    -20°C - 50°C (-4°F - 122°F), PoE 802.3af; -40°C - 50°C (-40°F - 122°F), PoE 802.3at
  • Humidity
    90%
  • Included Accessories
    Setup guide, T10 security Torx screwdriver, screw pack, mounting template, desiccant bag, water-proof connectors, pole mount straps, conduit adapter
Download PDF

Accessory List

  • ACC-MNT-1 Pendant Cap Mounting Adapter Kit

    Threaded cap that attaches to the rear of Camera. Use with Verkada ACC-MNT-2 mounting arm Built-in 3/4” NPT female and 1.5” NPT male piping connector.

  • ACC-MNT-2 Mounting Arm Kit

    Wall mounted extender arm. Use with Verkada ACC-MNT-1 pendant cap

  • ACC-MNT-3 Wall Mounted L-Shaped Bracket Kit

    Compact bracket for mounting camera perpendicular to wall

  • ACC-MNT-4 Pole Mount Adapter Kit

    Attaches ACC-MNT-2 or ACC-MNT-3 to a pole

  • INJ-POE-PLUS 802.3at PoE Injector

    Power over Ethernet (PoE) injector for powering Verkada cameras from a non-PoE enabled network connection

A Modern Camera Solution

Features that strengthen enterprise security and streamline surveillance management.
  • 01

    Centralized Management

    Gain visibility of all cameras with a single, easy-to-use platform.

  • 02

    Smart Features

    Everything you need to easily manage and monitor footage.

  • 03

    Remote Access

    Securely access cameras from any location, across all devices.

  • Floor Plan View

    Manage cameras across any number of locations and levels with floor plan view, and pin cameras to precise locations.

  • People & Car Detection

    With activity-based indexing, Verkada logs object-specific activities and alerts users of unusual motion in frame.

  • Share Feeds Instantly

    Share live links and get footage in the right hands without having to open ports or download supporting software.

Simple Setup

Step
01

Place camera over mount plate screws and twist counter-clockwise. Tighten screws with a Phillips screwdriver.

Step
02

Disassemble the cable access port in the camera base plate and feed ethernet cable up through the baseplate.

Step
03

Reassemble the cable access port around ethernet cable and tighten. Plug PoE port into camera.

Step
04

Replace the camera cover and secure it using the provided T10 Torx security screwdriver.

Full Install Guide

Try Verkada For Free

30-day trial includes camera and full access to management platform.

Start a Free Trial
