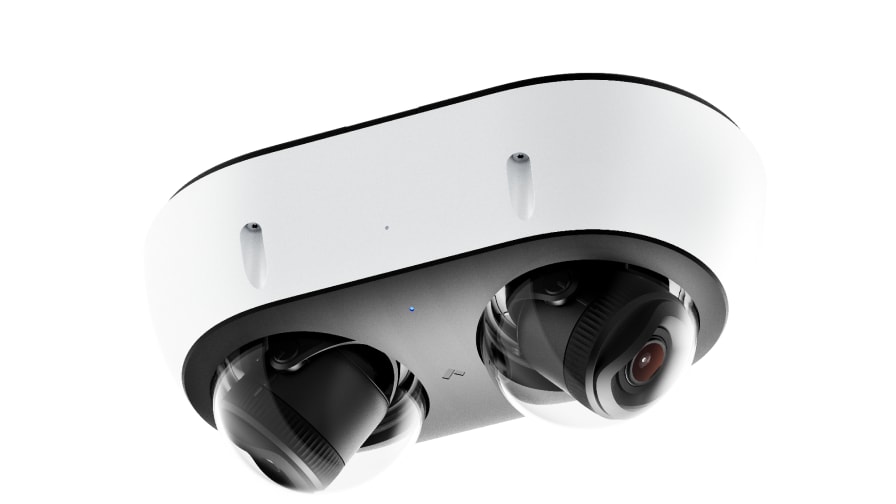

CY53-E Multisensor
10MP of Detailed Coverage From a Single Install Point
Vertical: 69° - 28° (65° - 26°)
Diagonal: 131° - 46° (111° - 43°)
Pan: +/- 90° for each lens
Rotation: +/- 90° for each lens
0 lux with IR Illuminators on
Card: MicroSD, SDXC
Standard quality (SQ): Up to 600 Kbps
Without IR: 37-57V, 0.37-0.24A, 13.5W
Extended temperature range: 37-57V, 0.60-0.45A, 25.5W
RFC 2326
Max concurrent streams: 4 (2 per camera head)
Audio support: Yes
Mount plate: 400g / 14.11oz
W: 143.0mm / 5.63in
H: 115.0mm / 4.53in with mount plate
H: 110.0mm / 4.33in without mount plate
1All our cameras record in "adaptive quality," capturing both standard (SQ) and high quality (SQ) streams. SQ video is stored up to the amount of retention specified by the customer. The amount of HQ video stored on the camera will depend on the amount of motion detected by the camera over time. To learn more, visit our website: https://docs.verkada.com/docs/adaptive-quality-recording-whitepaper.pdf
2Lens Distortion Correction (LDC) beschneidet das Sensorsichtfeld, um ein korrigiertes, unverzerrtes Output-Bild zu liefern.
3Extended temperature range includes operating temperatures below -10°C / 14°F and assumes IR will be enabled.
4Alle aufgeführten Funktionen können unabhängig voneinander für jeden Kamerakopf aktiviert werden.
5Die Bildrate kann durch den Support angepasst werden.
Accessories

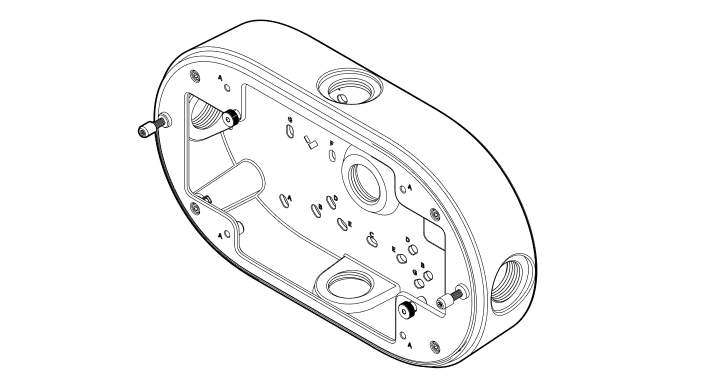

ACC-MNT-YJBOX-1
Two-Camera Multisensor Junction Box Mount
Mount, conceal, and protect - the ultimate solution for hiding wires and connectors and achieving a sleek, professional look.
ACC-MNT-XLARM-1
Large Arm Mount
Wall mount arm for larger cameras. Includes 1.5" NPT to connect to pendant caps and 3/4" NPT at the base for conduit.

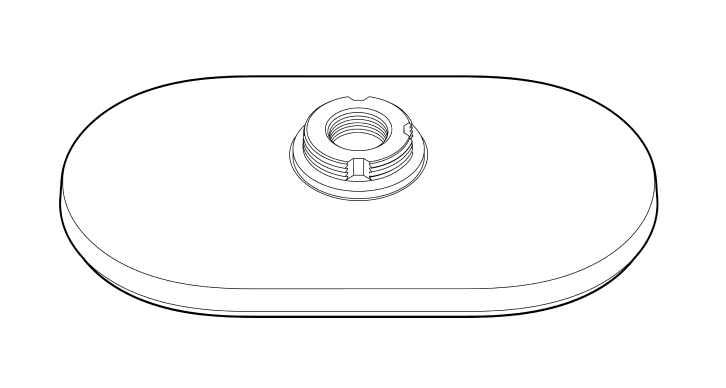

ACC-MNT-YPEND-1
Two-Camera Multisensor Pendant Cap Mount
Threaded cap features built in 3/4” female NPT and 1.5” male NPT threads.
ACC-MNT-ARM-1
Arm Mount
Wall mounted extender arm with built in 1.5” female NPT thread.
ACC-MNT-YPEND-1
Two-Camera Multisensor Pendant Cap Mount
Threaded cap features built in 3/4” female NPT and 1.5” male NPT threads.
ACC-MNT-YPEND-1
Two-Camera Multisensor Pendant Cap Mount
Threaded cap features built in 3/4” female NPT and 1.5” male NPT threads.
ACC-MNT-POLE-1
Pole Mount
For mounting cameras to circular poles 2" to 6" in diameter.
ACC-MNT-XLARM-1
Large Arm Mount
Wall mount arm for larger cameras. Includes 1.5" NPT to connect to pendant caps and 3/4" NPT at the base for conduit.
ACC-MNT-YPEND-1
Two-Camera Multisensor Pendant Cap Mount
Threaded cap features built in 3/4” female NPT and 1.5” male NPT threads.
ACC-MNT-POLE-1
Pole Mount
For mounting cameras to circular poles 2" to 6" in diameter.
ACC-MNT-ARM-1
Arm Mount
Wall mounted extender arm with built in 1.5” female NPT thread.
ACC-MNT-YPEND-1
Two-Camera Multisensor Pendant Cap Mount
Threaded cap features built in 3/4” female NPT and 1.5” male NPT threads.
ACC-MNT-CORNER-1
Corner Mount
Mount for installing cameras and accessories to external corners.
ACC-MNT-XLARM-1
Large Arm Mount
Wall mount arm for larger cameras. Includes 1.5" NPT to connect to pendant caps and 3/4" NPT at the base for conduit.
ACC-MNT-YPEND-1
Two-Camera Multisensor Pendant Cap Mount
Threaded cap features built in 3/4” female NPT and 1.5” male NPT threads.
ACC-MNT-CORNER-1
Corner Mount
Mount for installing cameras and accessories to external corners.
ACC-MNT-ARM-1
Arm Mount
Wall mounted extender arm with built in 1.5” female NPT thread.
ACC-MNT-YPEND-1
Two-Camera Multisensor Pendant Cap Mount
Threaded cap features built in 3/4” female NPT and 1.5” male NPT threads.
