CD22-E Dome

Essential 3MP Coverage for Monitoring Outdoor Environments

3MP
Image Resolution
78°
Horizontal FoV (After LDC)
10m / 33ft
IR Range
IP67
and IK10 Rated

Product Specifications

Camera features
Image Sensor
1 / 2.8″ Progressive CMOS
Sensor Resolution1
3MP (2048 x 1536)
Lens Type
Fixed
Focal Length
2.8mm
Aperture
F1.6
Iris
Fixed
Field of View (after LDC2)
Horizontal: 97° (78°)
Vertical: 71° (63°)
Diagonal: 128° (91°)
Sensor Movement
Tilt: 60°
Pan: 355°
Rotation: 180°
Shutter Speed
1 / 30 sec. to 1 / 10,000 sec.
Day/Night
IR-cut filter for day and night function
IR Cut Filter
Yes
IR Range
10m / 33ft
Minimum Illumination
0.009 lux @ F1.9 (Color)
0 lux with IR Illuminators on
Onboard Storage
Capacity: From 256GB to 768GB
Card: MicroSD, SDXC
CPU
Ambarella CV25S88

1All our cameras record in "adaptive quality", capturing both standard and high quality streams. Standard quality (SQ) video is stored up to the amount of retention specified by the customer. The amount of high quality video stored on the camera will depend on the amount of motion detected by the camera over time. To learn more, visit our website: https://docs.verkada.com/docs/adaptive-quality-recording-whitepaper.pdf

2Lens Distortion Correction (LDC) crops the sensor field of view to deliver a rectified, undistorted output image.

3Extended temperature range includes operating temperatures below -10°C / 14°F and assumes IR will be enabled.

4Frame rate can be adjusted by support.

Accessories

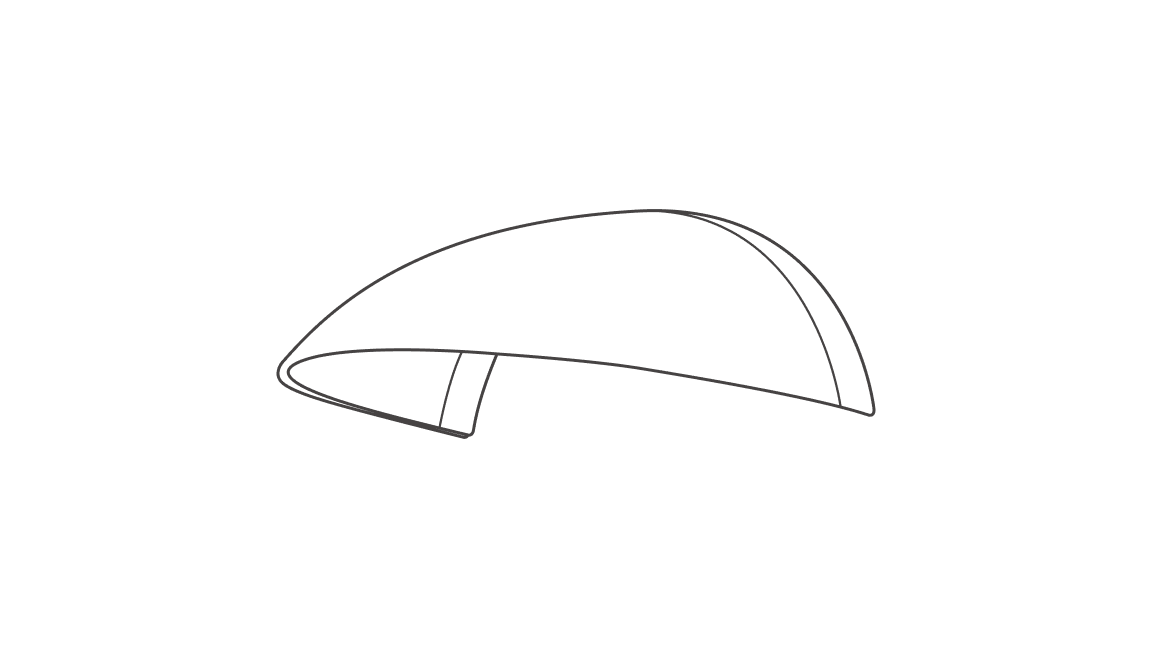

ACC-CAM-SHIELD-1

Camera Weather Shield

Weather shield for protecting the camera against external elements.

ACC-MNT-LBRAC-1

L-bracket Mount

Compact bracket for mounting camera perpendicular to wall.

ACC-MNT-CJBOX-1

Circle Junction Box

Junction box for mounting dome and fisheye cameras

ACC-MNT-ARM-1

Arm Mount

Wall mounted extender arm with built in 1.5” female NPT thread.

ACC-MNT-UPEND-1

Umbrella Pendant Cap

Threaded cap features built in 3/4” female NPT and 1.5” male NPT thread with extra protection from weathering.

ACC-MNT-POLE-1

Pole Mount

For mounting cameras to circular poles 2" to 6" in diameter.

ACC-CAM-SHIELD-1

Camera Weather Shield

Weather shield for protecting the camera against external elements.

ACC-MNT-POLE-1

Pole Mount

For mounting cameras to circular poles 2" to 6" in diameter.

ACC-MNT-LBRAC-1

L-bracket Mount

Compact bracket for mounting camera perpendicular to wall.

ACC-MNT-POLE-1

Pole Mount

For mounting cameras to circular poles 2" to 6" in diameter.

ACC-MNT-ARM-1

Arm Mount

Wall mounted extender arm with built in 1.5” female NPT thread.

ACC-MNT-UPEND-1

Umbrella Pendant Cap

Threaded cap features built in 3/4” female NPT and 1.5” male NPT thread with extra protection from weathering.

ACC-MNT-CORNER-1

Corner Mount

Mount for installing cameras and accessories to external corners.

ACC-CAM-SHIELD-1

Camera Weather Shield

Weather shield for protecting the camera against external elements.

ACC-MNT-CORNER-1

Corner Mount

Mount for installing cameras and accessories to external corners.

ACC-MNT-LBRAC-1

L-bracket Mount

Compact bracket for mounting camera perpendicular to wall.

ACC-MNT-CORNER-1

Corner Mount

Mount for installing cameras and accessories to external corners.

ACC-MNT-ARM-1

Arm Mount

Wall mounted extender arm with built in 1.5” female NPT thread.

ACC-MNT-UPEND-1

Umbrella Pendant Cap

Threaded cap features built in 3/4” female NPT and 1.5” male NPT thread with extra protection from weathering.
