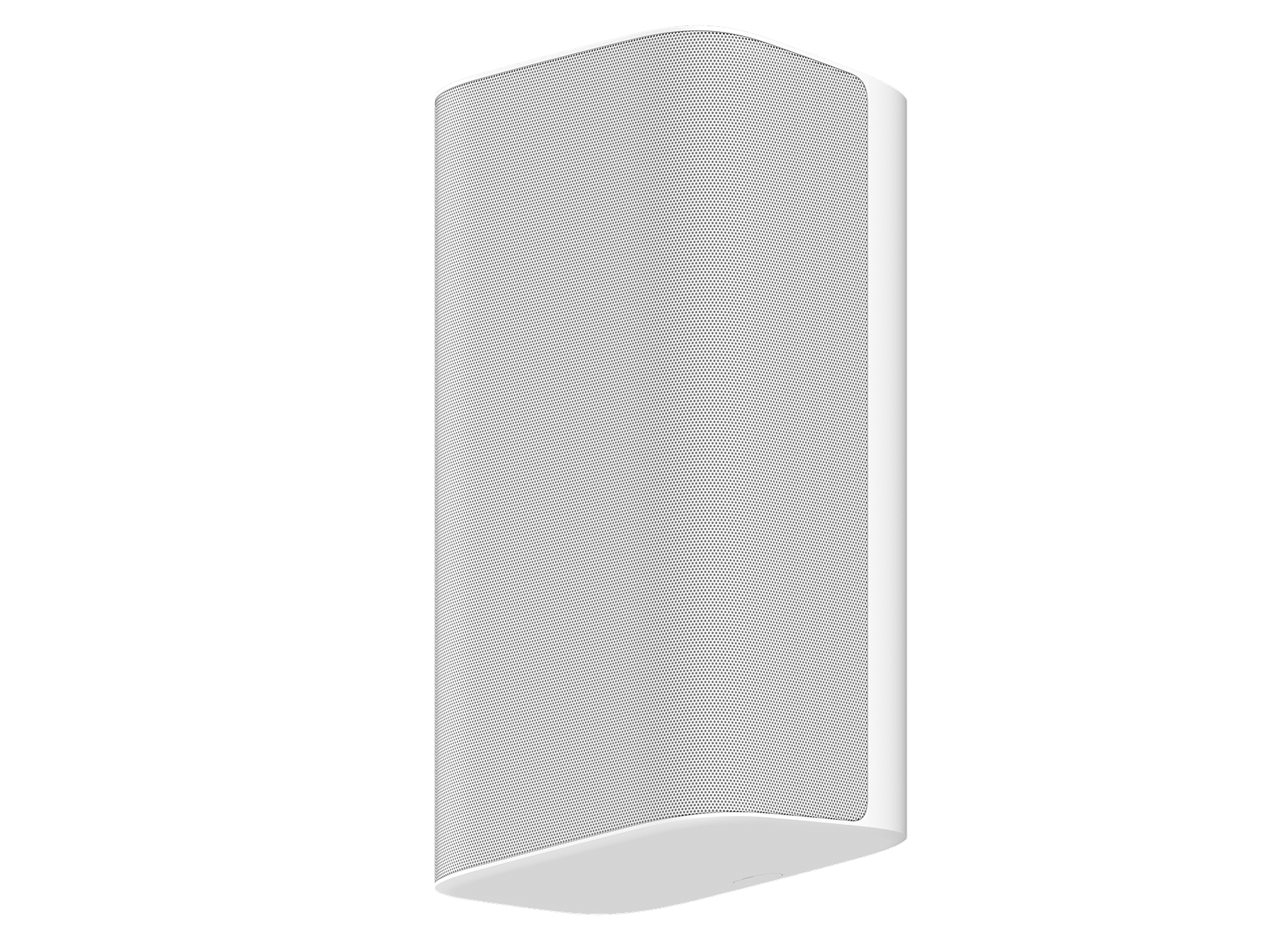

NS631-E Network Speaker
An indoor/outdoor network speaker for building entries and outdoor spaces.
6.5 " coaxial
Driver
65Hz - 20kHz
Frequency Range
Passthrough
PoE Support
IP66
Rated
Power and network
Power consumption
25W maximum, 5W idle (no audio playing)
Connectivity
Ethernet: 100/1000Mbps RJ45 for network connection
Power input
IEEE 802.3af/at/bt PoE, PoE+, PoE++ (37VDC — 57VDC), 960mA maximum per pair
Standalone: 802.3at (PoE, PoE+): 15W or 30W port budget required
With PoE pass-through: 802.3bt Type 3 or Type 4 (PoE++): 60W or 75W port budget required
Standalone: 802.3at (PoE, PoE+): 15W or 30W port budget required
With PoE pass-through: 802.3bt Type 3 or Type 4 (PoE++): 60W or 75W port budget required
Power output
802.3af/at PoE, PoE+ (37-57VDC), 30W maximum
Audio
Driver
6.5” coaxial
Dispersion angle
Horizontal coverage angle 82° @ 1m (-6 dB) 500 Hz - 8 kHz
Vertical coverage angle 90° @ 1m (-6 dB) 500 Hz - 8 kHz
Vertical coverage angle 90° @ 1m (-6 dB) 500 Hz - 8 kHz
Frequency range
65 - 20,000 Hz +/- 3dB
SPL
96dB SPL continuous / 100+dB SPL peak at 1m / 3.3ft
Compliance and availability
Availability
US, CAN, UK, AUS, NZ
Compliance and safety
See verkada.com/compliance
General
Dimensions
221 mm (8.7 in) x 408 mm (16.1 in) x 161 mm (6.3 in)
Operating temperature
-10°C - 50°C
0-90% RH non-condensing
0-90% RH non-condensing
Weight
6.4kg / 14lb with mount plate
Included accessories
Grommets (3-5mm, 7-9mm, 3-wire), wall mount screws (4), wall anchors (4), T10 Torx security screwdriver
Mounting options
Wall mount; compatible with round, square, double gang, and European junction boxes
Warranty
10 years
Separate accessories
ACC-NS-MNT-ANGLE-W-1,
ACC-MNT-SJBOX-1,
ACC-POE-90W
ACC-MNT-SJBOX-1,
ACC-POE-90W
Accessories
ACC-NS-MNT-ANGLE-W-1
Speaker Angle Mount
Mounts the speaker at an angle for flexible wall installations.
ACC-MNT-SJBOX-1
Square Junction Box Mount
Conceals and protects wiring and connectors within the wall or ceiling, providing a clean, professional finish when mounting.
ACC-POE-90W
Indoor 90W PoE++ Injector
PoE++ injector for powering network speakers. Use the injector indoors or within a NEMA enclosure.
