CM42-S Mini Split
Compact and Flexible 5MP Coverage for Specialized Deployments
5MP
Image Resolution
49ft / 15m
IR Range
2m / 6ft
USB-C Connecting Cable
How it Works

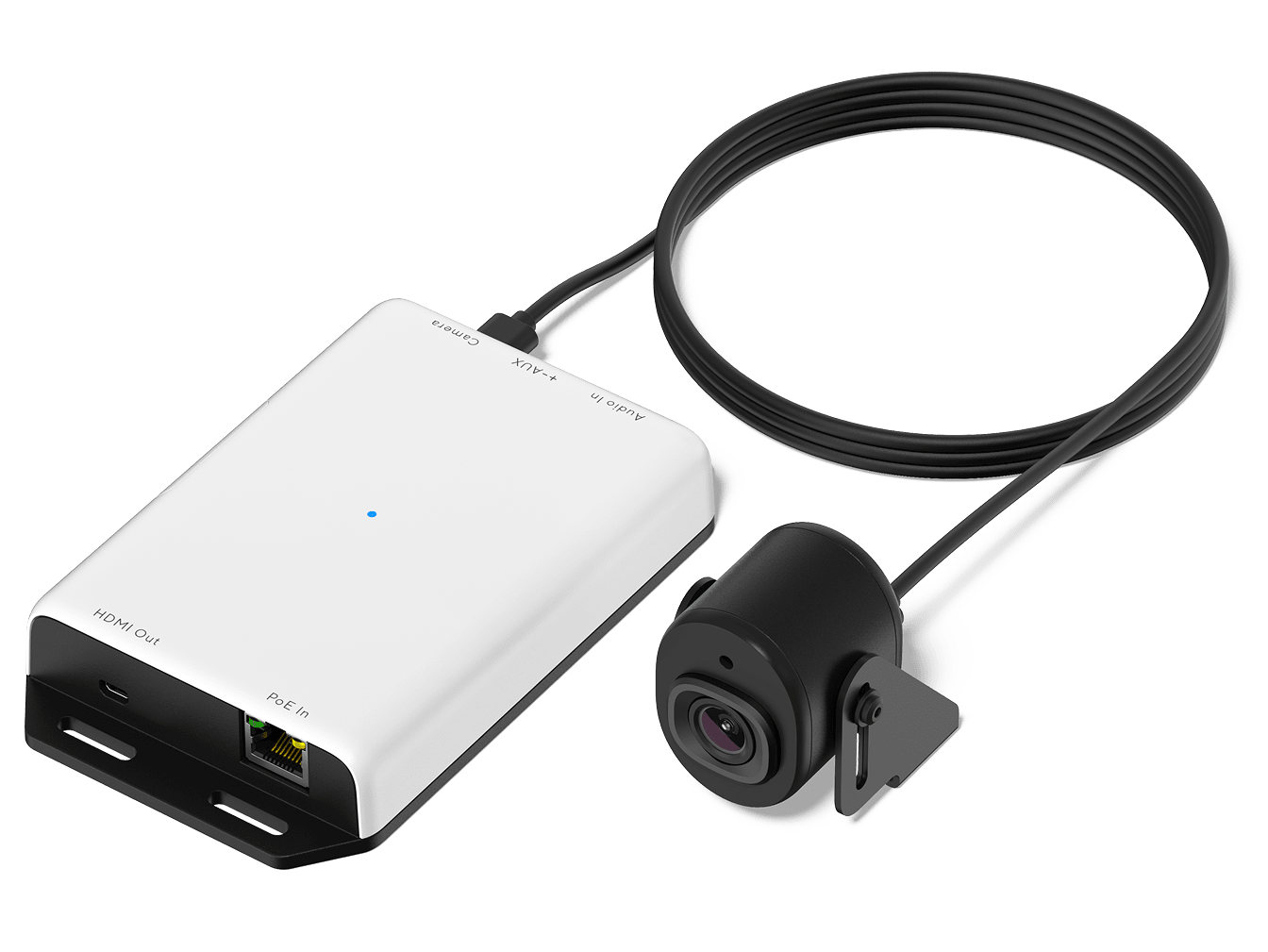

Verkada’s CM42-S provides crisp 5MP resolution in a discreet form factor. Its separate body contains storage and processing for advanced edge-based analytics.

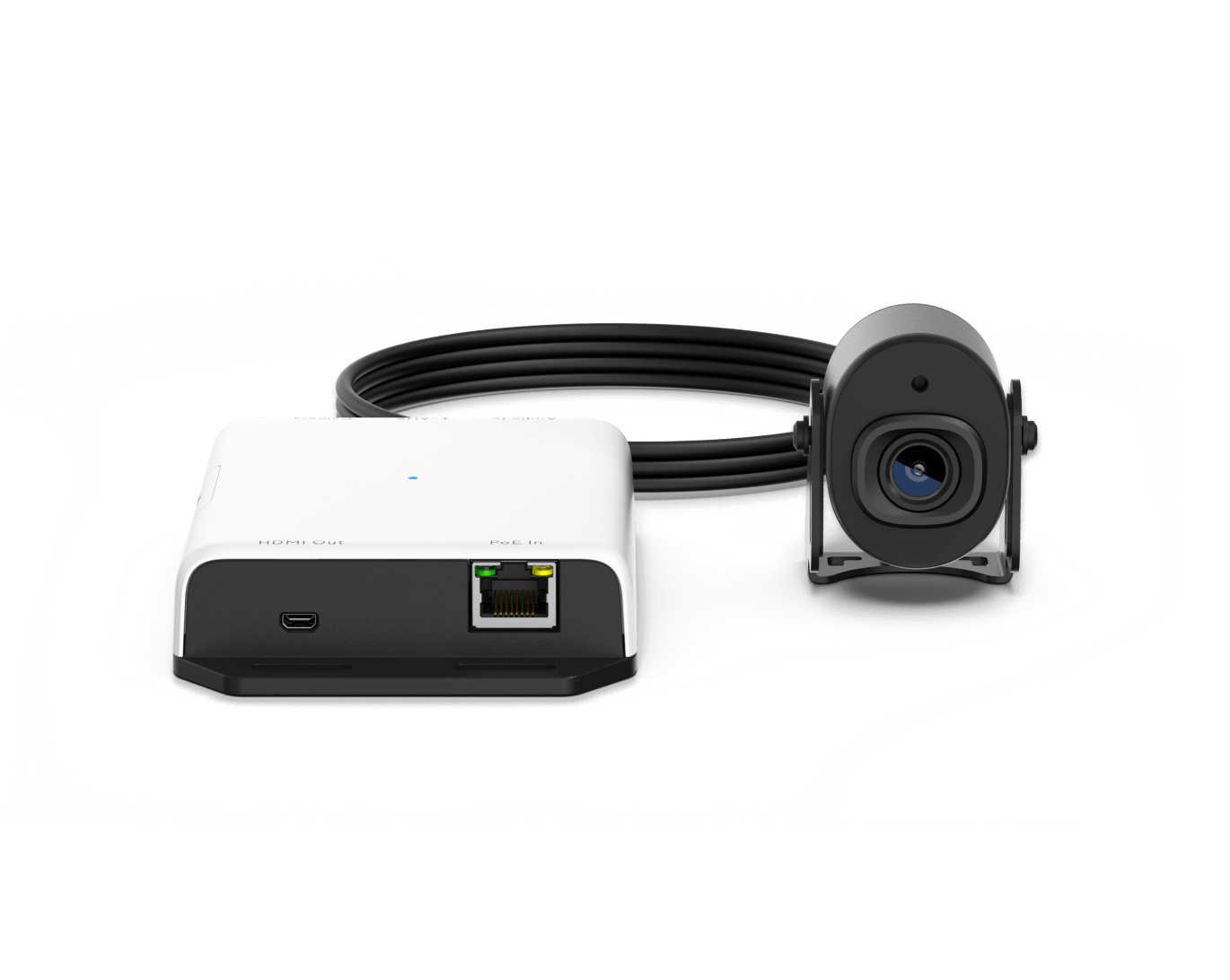

The CM42-S’s split body, long cable, and small form factor allows it to be easily installed in tight spaces, like ATMs, shelves, or retail countertops.
The CM42-S includes an HDMI output and microphone port–allowing customers to stream to a public viewing monitor in retail environments and supplement video coverage with audio for holistic monitoring.
Use the latest advancements in AI and computer vision to quickly identify persons of interest. Create AI-powered alerts using freeform text for suspicious individuals or for specific vehicles that appear in the camera’s field of view.
Camera Features
Image Sensor
1 / 2.8" Progressive CMOS
Sensor Resolution1
5MP (2592 x 1944)
Lens Type
Fixed
Focal Length
3.18mm
Aperture
F1.6
Iris
Fixed
Field of View (after LDC2)
Horizontal: 99° (80°)
Vertical: 71° (63°)
Diagonal: 107° (92°)
Vertical: 71° (63°)
Diagonal: 107° (92°)
Sensor Movement
Tilt: N/A
Pan: N/A
Rotation: N/A
Pan: N/A
Rotation: N/A
Shutter Speed
1 / 30 sec. to 1 / 10,000 sec.
Day/Night
IR-cut filter for day and night function
IR Cut Filter
Yes
IR Range
15 m / 49ft
Minimum Illumination
0.009 lux @ F1.9 (Color)
0 lux with IR Illuminators on
0 lux with IR Illuminators on
Onboard Storage
Capacity: 256GB, 768GB
Card: MicroSD, SDXC
Card: MicroSD, SDXC
CPU
Ambarella CV25S88
Inputs/Outputs
3.5mm audio input
Micro-HDMI output
+/- AUX5 with 12V / 4W power output
USB-C sensor input6
Micro-HDMI output
+/- AUX5 with 12V / 4W power output
USB-C sensor input6
Standard Video Settings
Compression
H.265, H.264
Frame Rate4
24fps
Live Streaming Settings
High quality (HQ): Up to 3,000 Kbps (default)
Standard quality (SQ): Up to 600 Kbps
Standard quality (SQ): Up to 600 Kbps
Historical Video Settings
Adaptive quality1
WDR Technology
104 dB dynamic range, true WDR, dual exposure.
Standard Audio Settings
Audio
Supported
Audio Capacity
One-way audio
Interface
3.5mm audio input
Power and Network
Power Input3
With IR: IEEE 802.3af Type 1 PoE
Without IR: IEEE 802.3af Type 1 PoE
Extended temperature range: N/A
Without IR: IEEE 802.3af Type 1 PoE
Extended temperature range: N/A
Power Consumption
With IR: 37-57V, 0.13-0.20A, 7.25W
Without IR: 37-57V, 0.08-0.12A, 4.30W
Extended temperature range: N/A
Without IR: 37-57V, 0.08-0.12A, 4.30W
Extended temperature range: N/A
Connectivity
RJ-45 cable connector for network/PoE connection; 10 / 100 / 1000 Mbps
RTSP
RTSP 1.0
RFC 2326
Max concurrent streams: 2
Audio support: Yes
RFC 2326
Max concurrent streams: 2
Audio support: Yes
General
Operating Temperature
-10°C to 50°C / 14°F to 122°F
Humidity
0 to 90%
Certifications
For hardware certification information, please visit verkada.com/compliance
LED Indicator
System power and status indicator
Warranty
10 Years
Included Accessories
T10 security torx screwdriver, 1x 1/4"-20 screw, 4x wall screws, 4x wall anchors, 1x 2m USB-C cable (USB3.1 (or higher) speed rated), double-sided tape for wall mounting main unit and sensor unit mount bracket
Mechanical
Weight
Camera Sensor Unit: 110.2g / 3.9oz
Camera Main Unit: 242.8g / 8.6oz
USB-C Cable: 79.9g / 2.8oz
Camera Main Unit: 242.8g / 8.6oz
USB-C Cable: 79.9g / 2.8oz
Dimensions
Camera Sensor Unit: H: 47.4mm / 1.9in, W: 36.4mm / 1.4in, L: 40.2mm / 1.6in
Camera Main Unit: H: 25.5mm / 1.0 in, W: 89mm / 3.5in, L: 152mm / 6.0in
Camera Main Unit: H: 25.5mm / 1.0 in, W: 89mm / 3.5in, L: 152mm / 6.0in
Body
Aluminum, plastic
Software Capabilities
Alerts
Camera status, motion detection, people detection, vehicle detection, Person of Interest detection, crowd detection, AI-powered alerts
Streaming and Storage
Cloud backup, configurable retention days, selectable storage location, low bandwidth mode, timelapse, RTSP
People Analytics
People search, attribute search, face search, Occupancy Trends, motion search, trajectory analysis, selective face blurring, AI-powered search
Sharing and Privacy
Live links, privacy regions, audit log
Vehicle Analytics
Vehicle search, attribute search, motion search, AI-powered search
1All our cameras record in "adaptive quality", capturing both standard and high quality streams. Standard quality (SQ) video is stored up to the amount of retention specified by the customer. The amount of high quality video stored on the camera will depend on the amount of motion detected by the camera over time. To learn more, visit our website: https://docs.verkada.com/docs/adaptive-quality-recording-whitepaper.pdf
2Lens Distortion Correction (LDC) crops the sensor field of view to deliver a rectified, undistorted output image.
3Extended temperature range includes operating temperatures below -10°C / 14°F and assumes IR will be enabled.
4Frame rate can be adjusted by support.
5Not currently supported
6USB-C 3.1 (or higher) cable required
