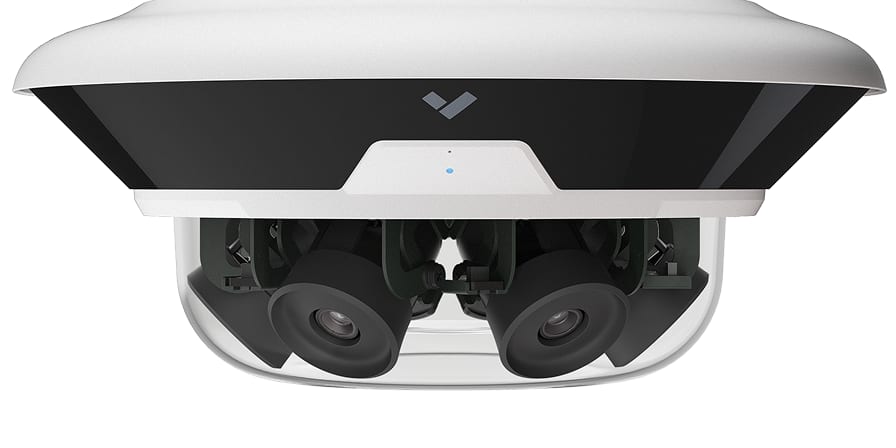

CH52-E-F Multisensor

20MP of Government-Grade Coverage From a Single Install Point

4 x 5MP

Image Resolution

2.08x

Optical Zoom

30m / 98ft

IR Range

IP66

and IK10 Rated

Free Trial Compare Models

Product Specifications

Download PDF Full Install Guide

Camera Features

Image Sensor

4 x 1 / 2.8" Progressive CMOS

Sensor Resolution¹

4 x 5MP (2688 x 1944)

Lens Type

Varifocal; Motorized zoom

Focal Length

3.7 - 7.7mm

Aperture

F1.9 - F2.9

Iris

N/A

Field of View (after LDC²)

Horizontal: 89° - 37° (82° - 35°)
Vertical: 65° - 29° (60° - 26°)
Diagonal: 99° - 46° (92° - 43°)

Sensor Movement

Tilt: +0° to 105° for each lens from horizon
Pan: +/- 90° for each lens
Rotation: +/- 90° for each lens

Shutter Speed

1 / 5 sec. to 1 / 32,000 sec.

Day/Night

IR-cut filter for day and night function

IR Cut Filter

Yes

IR Range

30m / 98ft; non-adjustable

Minimum Illumination

0.009 lux @ F1.9 (Color)
0 lux with IR Illuminators on

Onboard Storage

Capacity: From 1TB to 8TB
Card: MicroSD, SDXC

CPU

4 x Ambarella CV25S88

¹All our cameras record in "adaptive quality", capturing both standard and high quality streams. Standard quality (SQ) video is stored up to the amount of retention specified by the customer. The amount of high quality video stored on the camera will depend on the amount of motion detected by the camera over time. To learn more, visit our website: https://docs.verkada.com/docs/adaptive-quality-recording-whitepaper.pdf

²Lens Distortion Correction (LDC) crops the sensor field of view to deliver a rectified, undistorted output image.

³Extended temperature range includes operating temperatures below -10°C / 14°F and assumes IR will be enabled.

⁴All the listed features can be enabled independently for each camera head.

⁵Frame rate can be adjusted by support.

Accessories

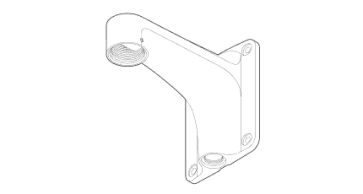

ACC-MNT-XLARM-1

Large Arm Mount

Wall mount arm for larger cameras. Includes 1.5" NPT to connect to pendant caps and 3/4" NPT at the base for conduit.

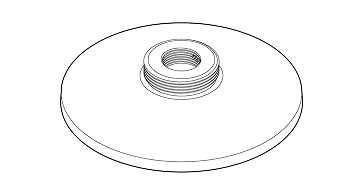

ACC-MNT-PEND-1

Pendant Cap Mount

Threaded cap features built in 3/4'' female NPT and 1.5'' male NPT threads.

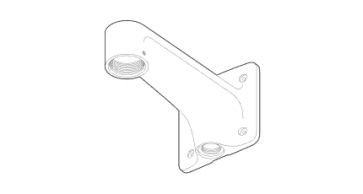

ACC-MNT-ARM-1

Arm Mount

Wall mounted extender arm with built in 1.5” female NPT thread.

ACC-MNT-PEND-1

Pendant Cap Mount

Threaded cap features built in 3/4'' female NPT and 1.5'' male NPT threads.

ACC-MNT-PEND-1

Pendant Cap Mount

Threaded cap features built in 3/4'' female NPT and 1.5'' male NPT threads.

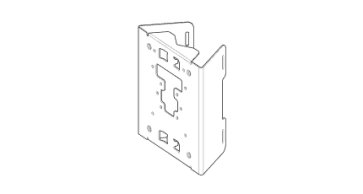

ACC-MNT-POLE-1

Pole Mount

For mounting cameras to circular poles 2" to 6" in diameter.

ACC-MNT-XLARM-1

Large Arm Mount

Wall mount arm for larger cameras. Includes 1.5" NPT to connect to pendant caps and 3/4" NPT at the base for conduit.

ACC-MNT-PEND-1

Pendant Cap Mount

Threaded cap features built in 3/4'' female NPT and 1.5'' male NPT threads.

ACC-MNT-POLE-1

Pole Mount

For mounting cameras to circular poles 2" to 6" in diameter.

ACC-MNT-ARM-1

Arm Mount

Wall mounted extender arm with built in 1.5” female NPT thread.

ACC-MNT-PEND-1

Pendant Cap Mount

Threaded cap features built in 3/4'' female NPT and 1.5'' male NPT threads.

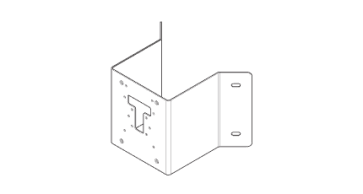

ACC-MNT-CORNER-1

Corner Mount

Mount for installing cameras and accessories to external corners.

ACC-MNT-XLARM-1

Large Arm Mount

Wall mount arm for larger cameras. Includes 1.5" NPT to connect to pendant caps and 3/4" NPT at the base for conduit.

ACC-MNT-PEND-1

Pendant Cap Mount

Threaded cap features built in 3/4'' female NPT and 1.5'' male NPT threads.

ACC-MNT-CORNER-1

Corner Mount

Mount for installing cameras and accessories to external corners.

ACC-MNT-ARM-1

Arm Mount

Wall mounted extender arm with built in 1.5” female NPT thread.

ACC-MNT-PEND-1

Pendant Cap Mount

Threaded cap features built in 3/4'' female NPT and 1.5'' male NPT threads.
