AC12 One-Door Controller
Comprehensive capabilities, compact design

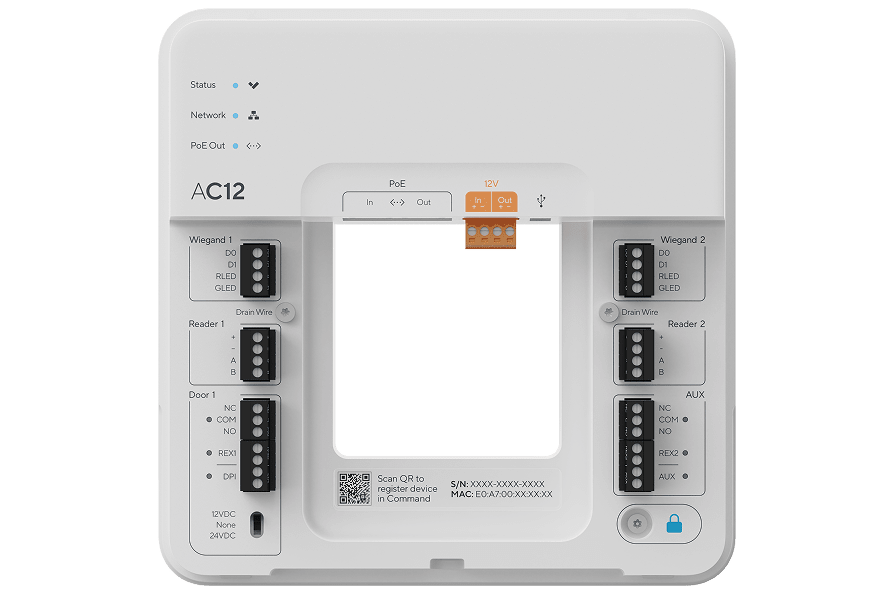

Meet the AC12
The AC12 One-Door Controller minimizes installation cost and complexity for doors that would otherwise be difficult to secure with an electronic system.
Cloud-managed access control for standalone doors
More complete door security with PoE passthrough

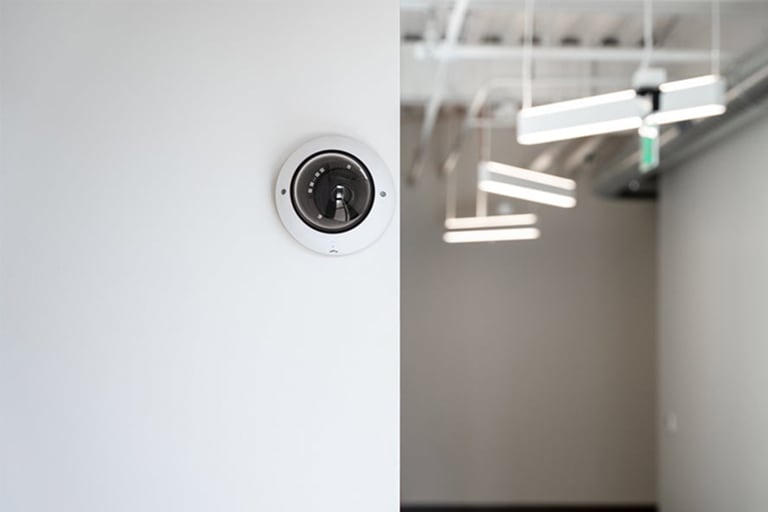

Bring added security and visibility to entryways by powering a Verkada context camera, alarm console, or other peripheral device with PoE passthrough.

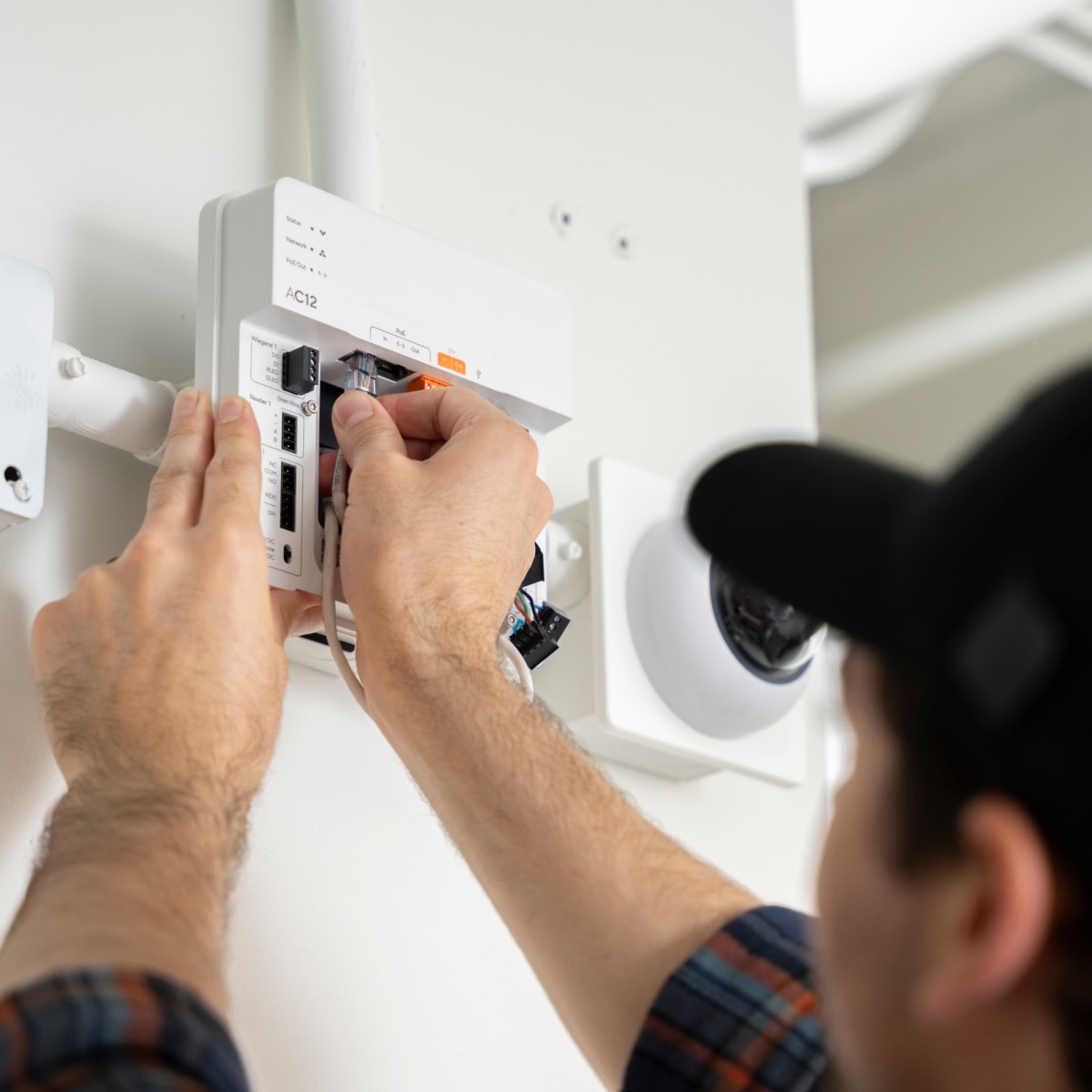

Simplified installation in nearly any location
The AC12 fits discreetly above high-visibility building entrances, within drop ceilings that provide air circulation, or in buildings where installing a larger controller may not be feasible.

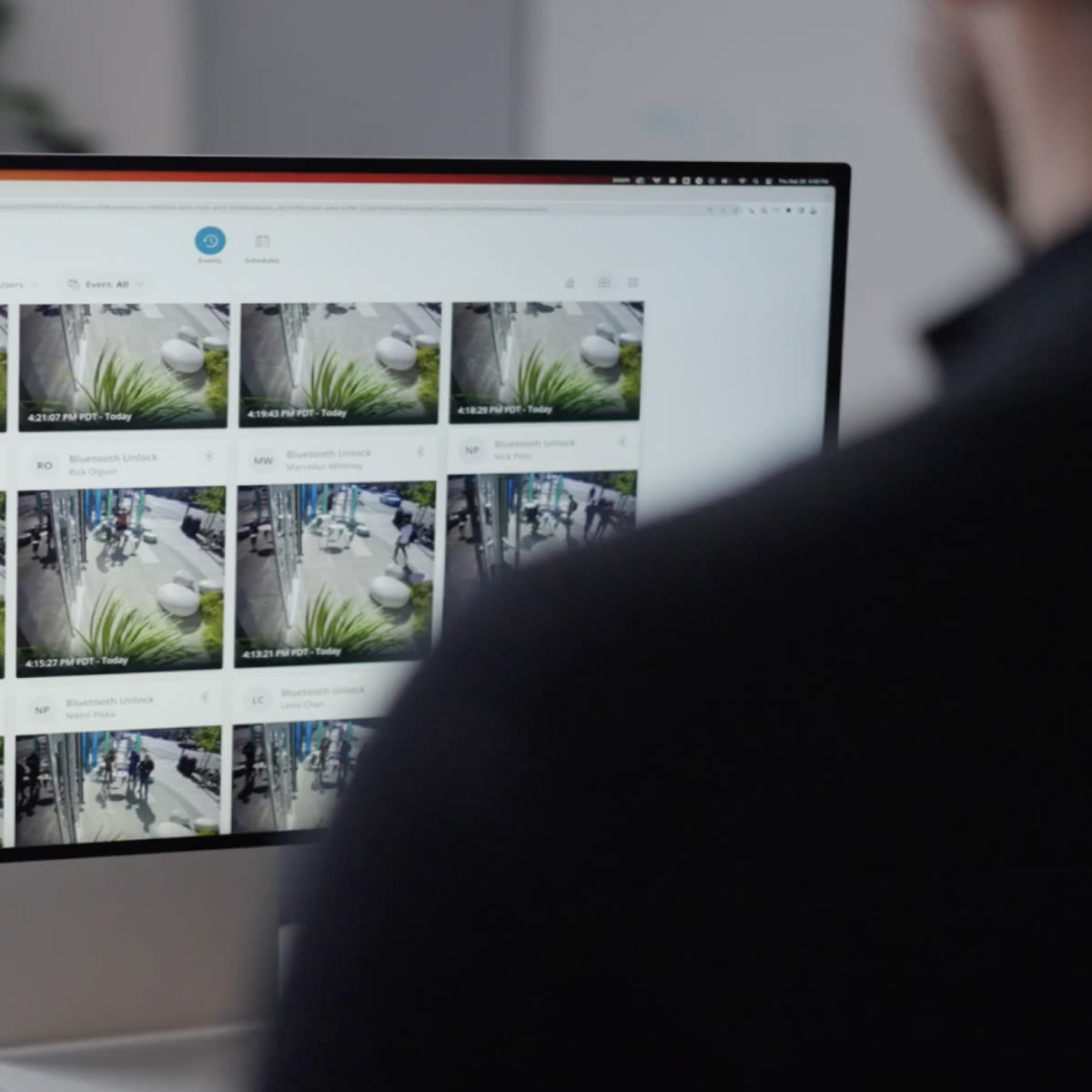

Smarter access management with Verkada Command
Enhance entryway security - including setting up and maintaining access levels, door schedules and user credentials - from any device in any location with Verkada Command.
All access controllers include
Support for up to 10,000 Users
Unlimited access levels and schedule configurations
10-year warranty
Automatic firmware and software upgrades
Native camera integration
Compute and storage at the edge
Support for normal operations during internet outages
Remote door lock/unlock
Support for up to 10,000 Users
Unlimited access levels and schedule configurations
10-year warranty
Automatic firmware and software upgrades
Native camera integration
Compute and storage at the edge
Support for normal operations during internet outages
Remote door lock/unlock
Support for up to 10,000 Users
Unlimited access levels and schedule configurations
10-year warranty
Automatic firmware and software upgrades
Native camera integration
Compute and storage at the edge
Support for normal operations during internet outages
Remote door lock/unlock
28W Max (on PoE+)
60W Max (on PoE++ with PoE passthrough camera)
1x DPI dry input
1x AUX input
Wet relay switch-selectable power: 12VDC operation 700mA max, 24VDC operation 350mA max
Width: 55.3mm / 2.2in
Height: 175.4mm / 6.9in
