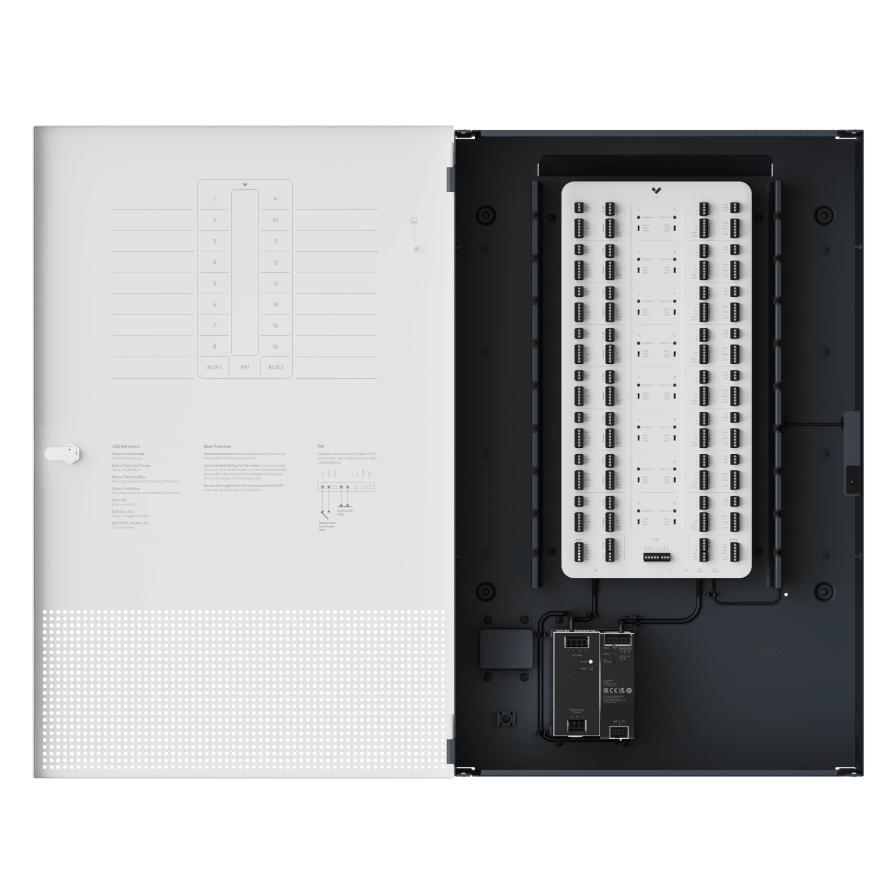

AC62-G
Government-grade, FIPS 140-2 validated encryption, TAA & FY2019 NDAA compliant sixteen-door controller that streamlines large deployments
Coming December
1x
12V/24V Door Port
1x
FAI
2x
REX Inputs, Reader Inputs
2x
AUX Input, AUX Output
Power and network
Power Consumption
350W maximum
AC Power Input
100 - 240 VAC
50 - 60Hz
50 - 60Hz
Input
2x REX dry inputs per door
1x DPI dry input per door
2x auxiliary dry inputs
1x DPI dry input per door
2x auxiliary dry inputs
AUX Power
2x 12V @ 1A output
2x 24V @ 0.5A output
2x 24V @ 0.5A output
Reader and Relay Outputs
Readers
1x reader port (Verkada/RS-485 or Wiegand) per door
2x auxiliary reader ports (Verkada/RS-485)
Reader current consumption must be < 250mA per reader
Note: max of 16 readers can be powered simultaneously
2x auxiliary reader ports (Verkada/RS-485)
Reader current consumption must be < 250mA per reader
Note: max of 16 readers can be powered simultaneously
Relay Outputs
1x wet or dry relay per door
Wet relay switch-selectable power:
Wet relay switch-selectable power:
- 12V operation 1A max
- 24V operation 0.5A max
- 24VDC @ 2A (Resistive load)
- 2x auxiliary dry relays
Compliance and Availability
Availability
US, CAN, AUS, NZ, Japan, EU
Compliance & Safety
For hardware certification information, please visit verkada.com/compliance
General
Dimensions
Length: 773.0mm / 30.0in
Width: 499.0mm / 20.0in
Height: 186.0mm / 7.0in
Width: 499.0mm / 20.0in
Height: 186.0mm / 7.0in
Weight
20.0kg / 44lb
Operating Temperature
0°C - 50°C
(5 - 90% Humidity)
(5 - 90% Humidity)
Connectivity
Ethernet: 100/1000Mbps RJ-45 for network connection USB 2.0
Included Accessories
Lock key and flat head screwdriver
Mounting Options
Mounting plate and 6 screws (#12x1")
