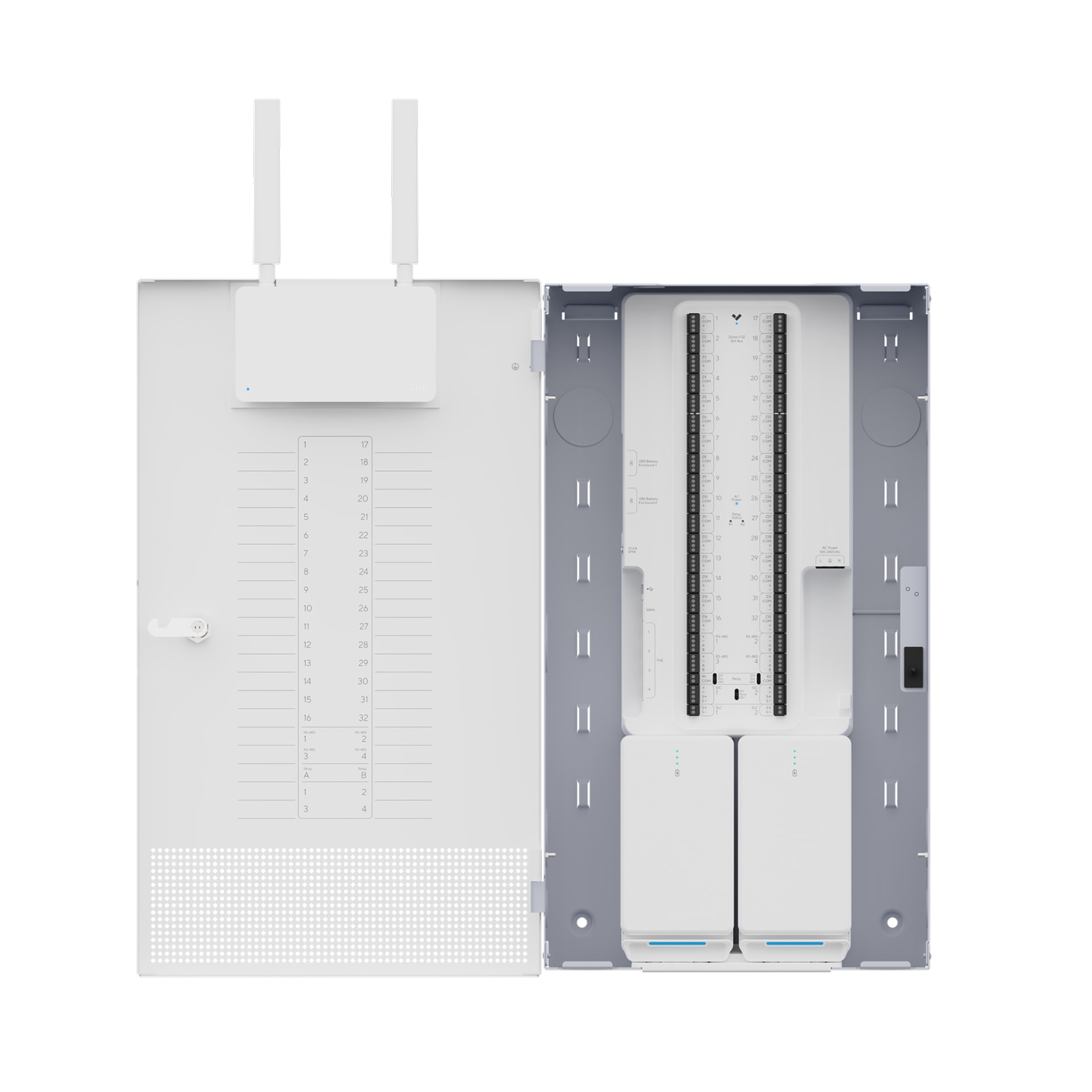

BP52 Alarm Panel
Combination fire and burglary panel for sites of any size.
32
wired zones
4
RS485 outputs
2
relay outputs
Power and network
Power Consumption
175W max
See Output Specifications table for load limits
See Output Specifications table for load limits
Power Input
100-240V AC (50-60Hz)1
2x battery slots (for ACC-VBX-200WH)
2x battery enclosure ports (for ACC-VBX-ENC)
2x battery slots (for ACC-VBX-200WH)
2x battery enclosure ports (for ACC-VBX-ENC)
Uplink
100/1000 Mbps RJ45 port,
USB 2.0 (for ACC-CEL-LTE-2)
USB 2.0 (for ACC-CEL-LTE-2)
Wireless Communication
VLink sub-GHz transceiver
VLink Wireless Range
Please refer to the downstream device datasheet
Inputs and outputs
Alarm Inputs
32x inputs with 12V DC aux power
Compatible with variable EOL resistors
(1kΩ - 4.7kΩ)
Compatible with variable EOL resistors
(1kΩ - 4.7kΩ)
Relay Outputs
2x relays for siren/strobe/NAC with switch-selectable voltage & optional dry config:
• 12 or 24V DC wet operation
• 24V DC dry operation
• 12 or 24V DC wet operation
• 24V DC dry operation
Conventional Fire Input (IDC)
2x 2-wire or 2x 4-wire Initiating Device
Circuit inputs (conventional) with switch-selectable 12/24V DC aux power
Note: IDC inputs share a single switch for voltage selection
Circuit inputs (conventional) with switch-selectable 12/24V DC aux power
Note: IDC inputs share a single switch for voltage selection
Addressable Fire Input (SLC)2
2x 2-wire Signaling Line Circuit inputs (addressable) with 36V DC aux power
RS485 Outputs
4x RS485 outputs with 36V DC aux power
PoE Outputs
4x PoE+ / 802.3at capable ports
60W total power budget
60W total power budget
Tamper Detection
Yes
General
Dimensions (with enclosure)
Height: 21.9 in / 55.7 cm
Width: 12.7 in / 32.3 cm
Depth: 4.6 in / 11.6 cm
Width: 12.7 in / 32.3 cm
Depth: 4.6 in / 11.6 cm
Weight
16.2 lb / 7.3 kg
Operating Temperature and Humidity
32 to 122° F / 0 to 50° C
0-90% RH non-condensing
0-90% RH non-condensing
Warranty
10 years
Certifications
FCC, IC, CE, UKCA, RCM, CEC BC, UL/IEC 62368-1, CSA NO22.2 62368-1
Installation
Included Accessories
AC cable, VLink antenna, 32x 1kΩ EOL resistors, wall mount, 2x keys for built-in lock, flathead screwdriver, 4x plywood screws
Mounting Options
Wall mount
1Can directly connect to AC mains or use included AC cable
2Future software support
Accessories

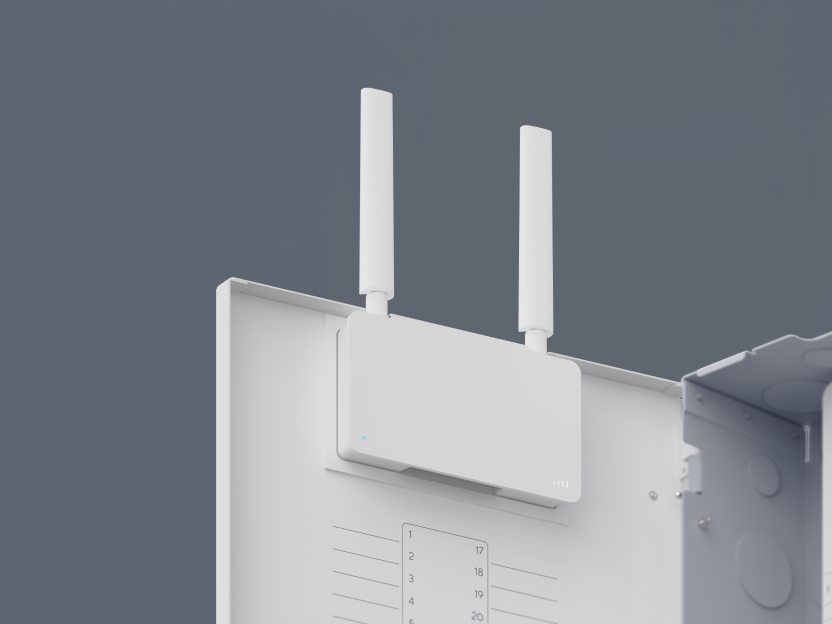

ACC-CEL-LTE-2
Cellular Backup Communicator
Provides LTE backup connectivity to wired panels.

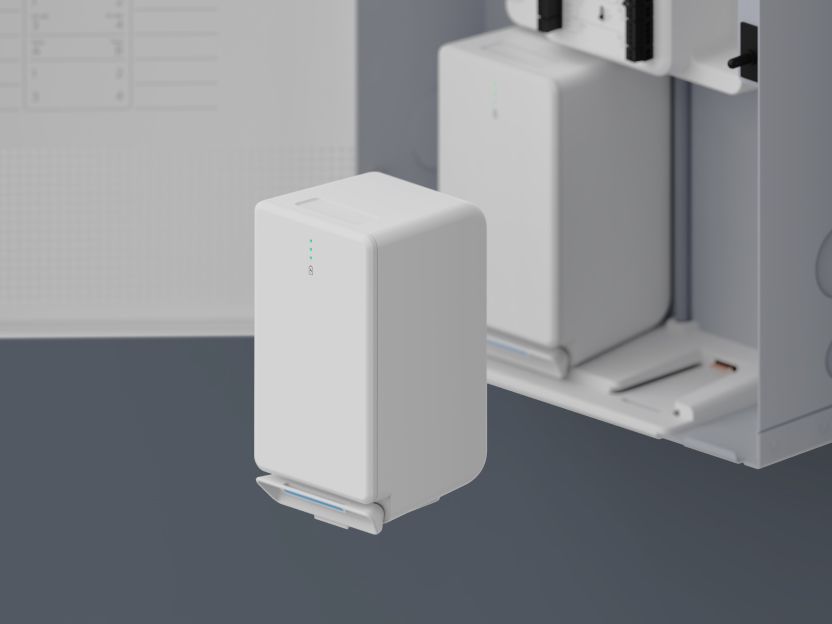

ACC-VBX-200WH
200Wh Backup Battery
LiFePO4 backup battery for the BP52 Alarm Panel

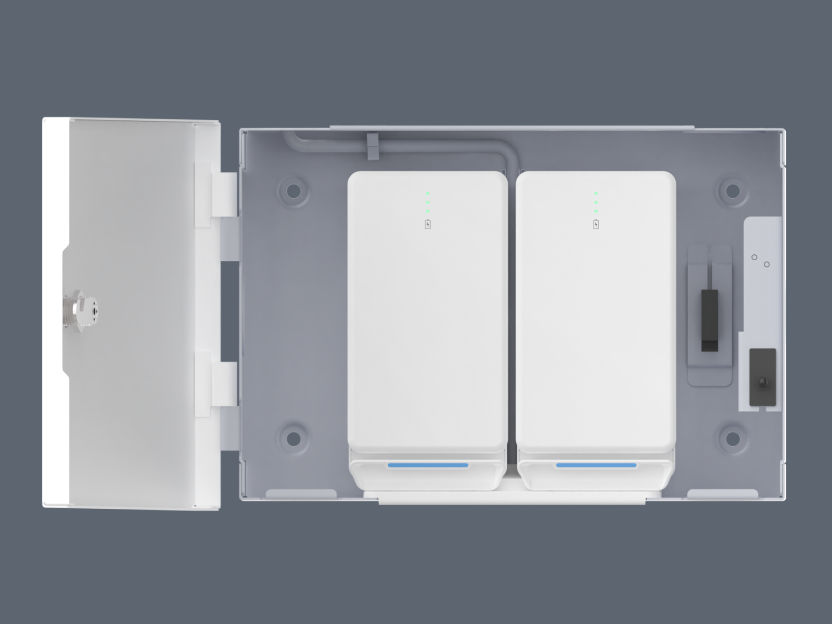

ACC-VBX-ENC
Battery enclosure
Allows for two additional backup batteries to be connected to the BP52 Alarm Panel
