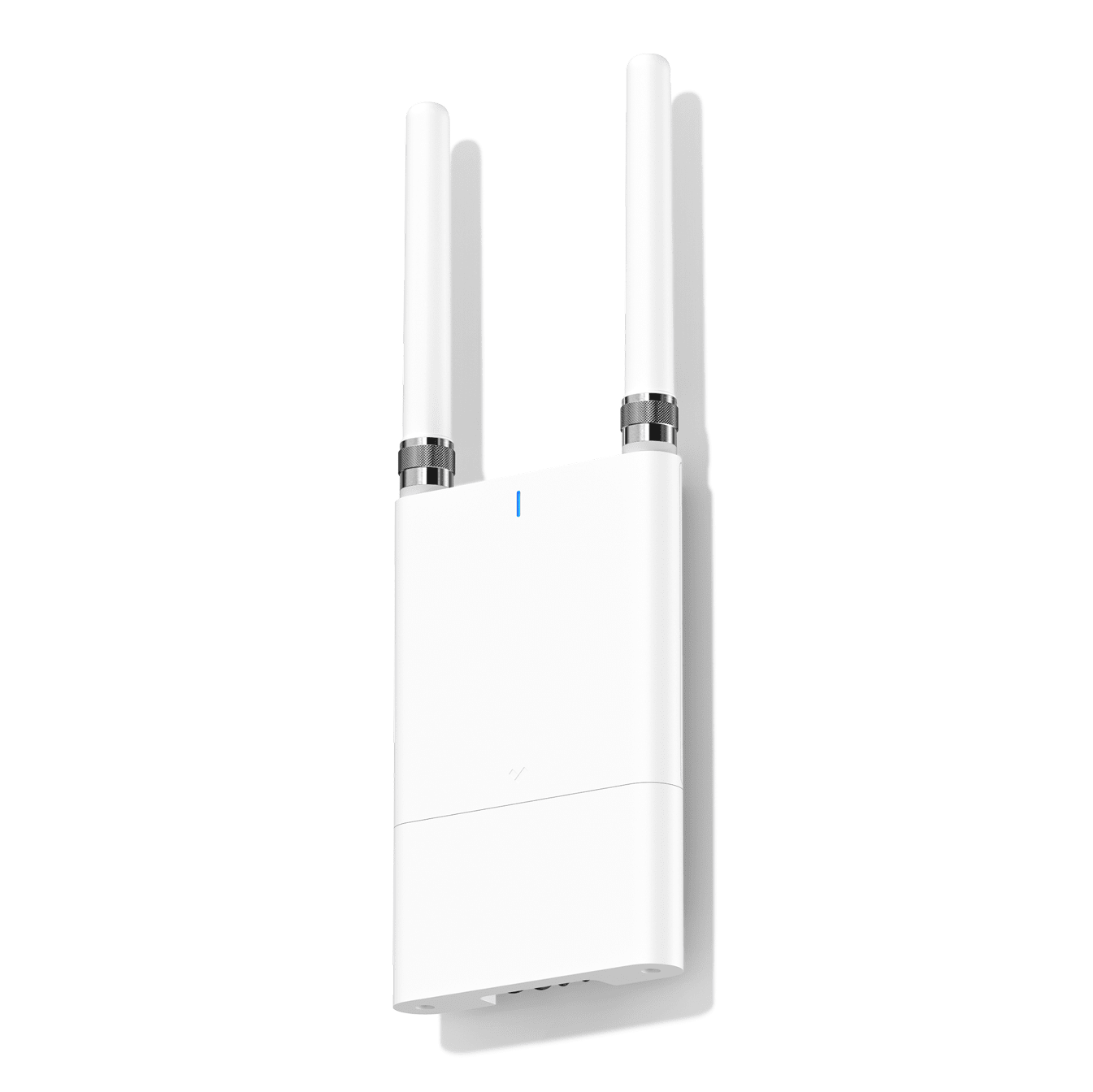

GW31-E Wi-Fi Gateway

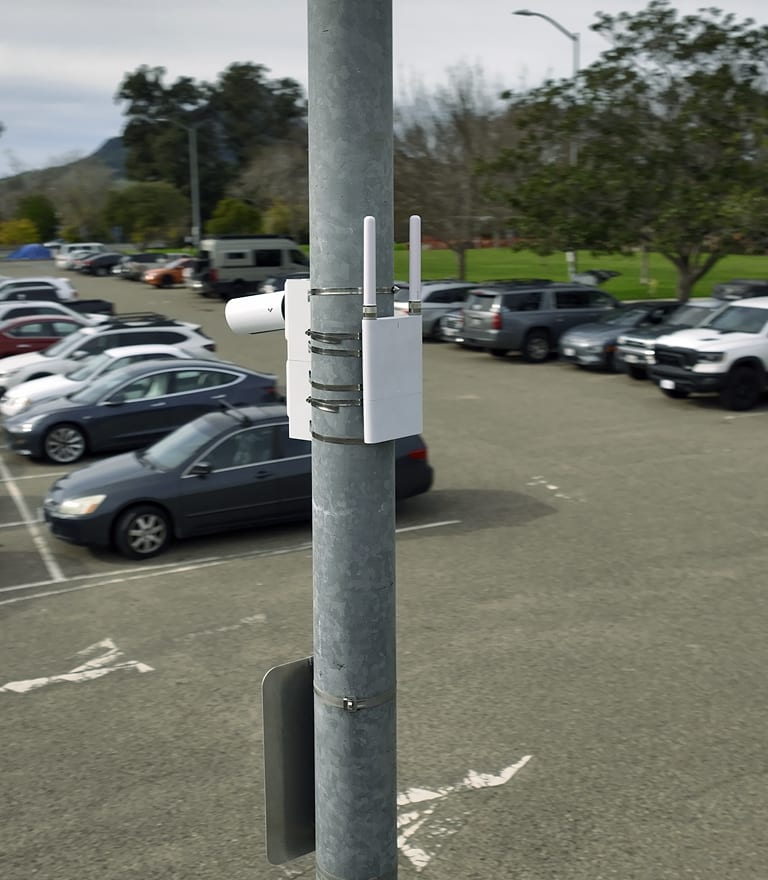

Outdoor Wi-Fi gateway for deploying Verkada in hard-to-wire places such as parking lots, gates, and outdoor premises.
Use cases
Easy button for perimeter security
The GW31-E makes it easy to deploy Verkada anywhere with power and Wi-Fi. Feed the GW31-E any power source, connect it to an AP, and it will send both power and data to any Verkada device via PoE.
Easy button for perimeter security
The GW31-E makes it easy to deploy Verkada anywhere with power and Wi-Fi. Feed the GW31-E any power source, connect it to an AP, and it will send both power and data to any Verkada device via PoE.

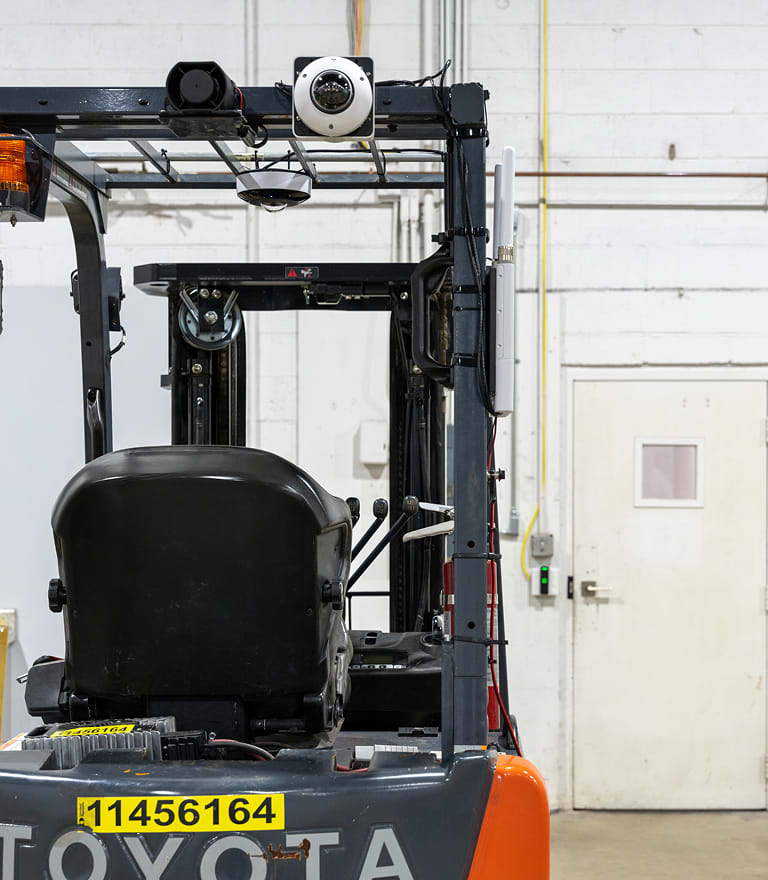

The gateway works with nearly any power source, including AC, light poles, DC, solar, and even vehicles.
The GW31-E can reach outdoor APs up to 1,000 ft away with the included antennas, and up to 2,000 ft away with our directional antenna.
With two PoE++ capable outputs that supply up to 60W total, the GW31-E can directly power up to two devices without a switch.
The GW31-E features perpetual PoE outputs, meaning that connected devices stay powered on even when the gateway reboots.
Cloud-managed in Command
Remotely manage gateways via the Command web or mobile app. See all your gateways on a map, remotely run diagnostics, and receive alerts if connectivity is lost.
2.4 or 5 GHz (single radio)
WPA2/3 Enterprise (username/password only)
Note: Directional antenna sold separately

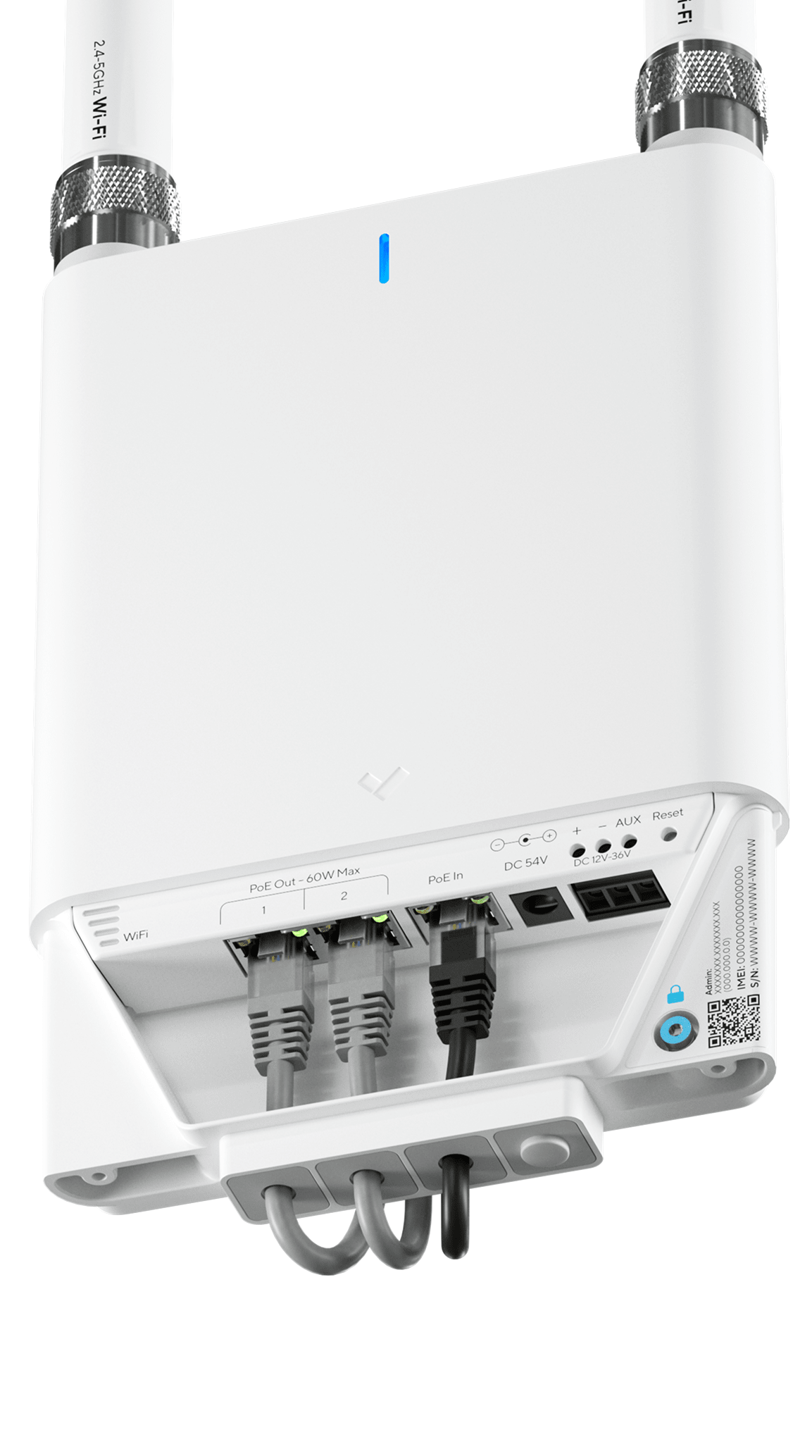

(2 x LAN and 1 x WAN/LAN configurable)
Bluetooth (Command iOS app required)
Local server page (via Ethernet)
802.3bt Type 4 PoE++ 90W
12-36V DC Terminal Block
Note: Power accessories sold separately
60W total power budget
19W below -25°C / -13°F
Note: Does not include connected devices
L: 243mm / 9.6in
W: 148mm / 5.9in
H: 33mm / 1.3in
Antennas:
Ø: 25mm / 1.0in
L: 179mm / 7.1in
5-90% RH non-condensing
4 signal strength LEDs
ACC-POE-90W-E
Accessories
IP66-rated PoE++ injector for powering the GW31-E in harsh environments. The GW31-E can be mounted directly on the injector.
PoE++ injector for powering the GW31-E. Place the injector indoors or within a NEMA enclosure.
AC/DC barrel jack adapter for the GW31-E. Place the adapter indoors or within a NEMA enclosure.
Power the GW31-E by tapping into the electrical circuit of a streetlight. The power tap connects directly to AC and provides PoE.
Outdoor-rated directional Wi-Fi antenna for improving signal strength on the GW31-E.
