TS12 Square Audio Intercom
Audio intercom designed for clear communication in almost any environment.
Coming Soon
95dB
4
IP69 and IK10

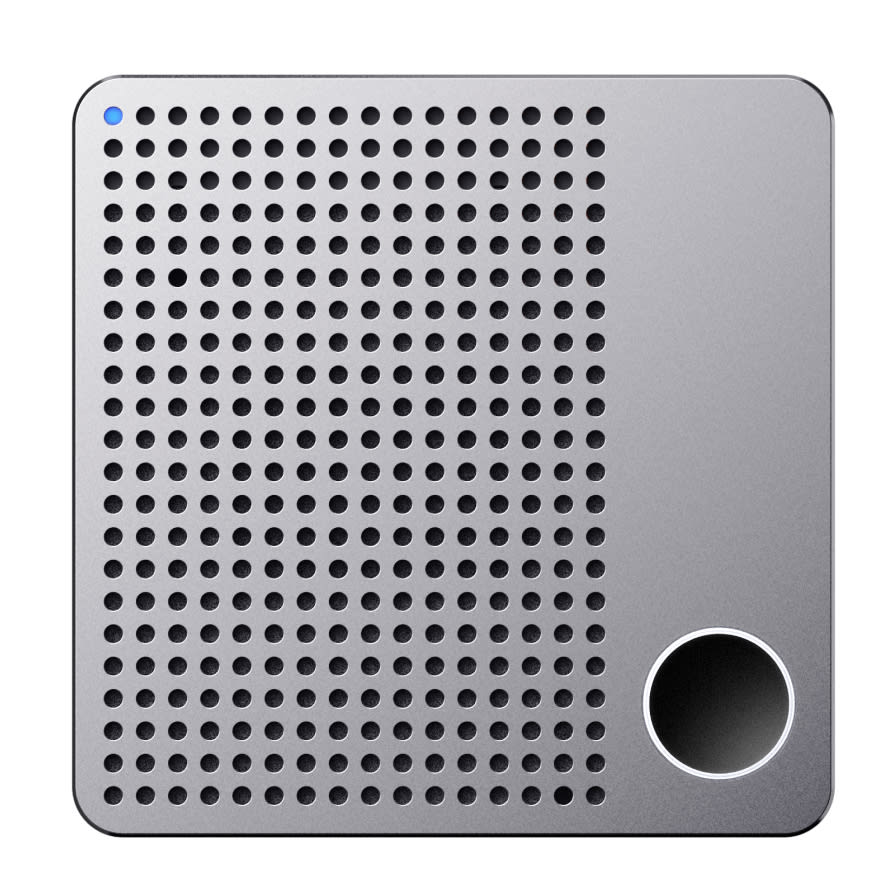

TS12-N
Square Audio Intercom

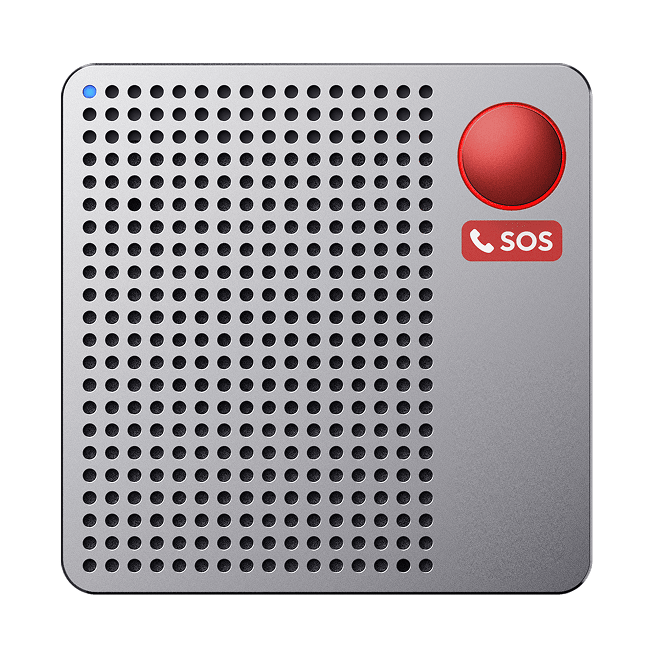

TS12-N-RB
Square Audio Intercom
(Red Button)

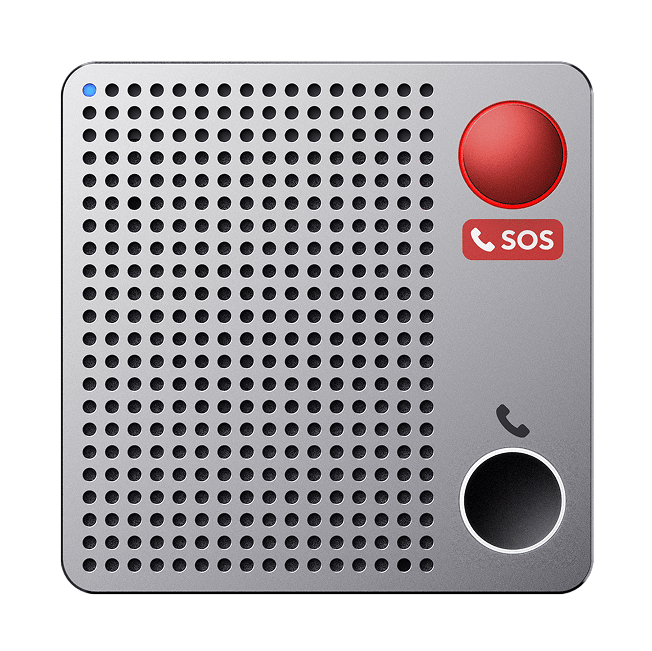

TS12-N-R2B
Square Audio Intercom
(Red & Call Buttons)
Onboard Storage
32GB
Audio Input
4 omnidirectional digital MEMS microphones
Audio Output
8W speaker ; 95dB SPL at 1m / 3.3ft
Audio Streaming
Two-way, full duplex with echo cancellation and noise suppression
Connectivity
Ethernet: 10/100/1000Mbps RJ-45 cable connector for Network/PoE connection
Inputs / Outputs
2x dry inputs
1x dry relay, 30VDC @ 1A (resistive load)
1x RS-485 interface
1x power output, 12V @ 250mA
1x audio line output(1Vrms) or amp output (16W into 4Ω or 8W into 8Ω)
Dimensions
Height: 128mm / 5in
Width: 128mm / 5in
Depth: 55mm / 2.17in
Weight
0.8kg / 1.8lb
Tamper detection
Yes
Operating Specs
IEEE 802.3af (PoE): Operating Temperature: -20°C – 50°C / -4°F – 122°F
IEEE 802.3at or 802.3bt (PoE+ or PoE++): Operating Temperature: -40°C – 50°C / -40°F – 122°F
Included Accessories
T10 screwdriver, mounting hardware kit
Separate Accessories
Conduit surface mount, emergency adapter plate, PoE over 2-wire converter
Accessories
Designed for retrofit installs on traditional blue light emergency phone mounts.
Supports installations onto gooseneck pedestals or in circumstances requiring cable conduits.
Convert existing 2-wire power and data cabling into a single PoE connection, at the device, to power the TS12.
