CB51-TE

CB51-TE

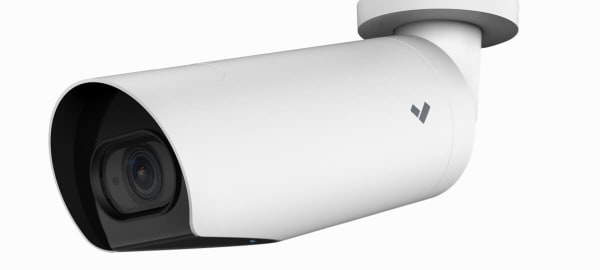

High resolution, general-purpose bullet camera with telephoto zoom lens and intelligent edge-based analytics.
  • 5 MP
    Image Resolution
  • 8-20 mm
    Focal Length
  • IP67
    and IK10 Rated
  • 50 M
    IR Range

Product Specifications

  • Image Sensor
    1/2.8″ Progressive CMOS
  • Dimensions
    Ø: 81 L: 263mm with mountplate
  • Image Resolution
    5MP / 2688 x 1944
  • IR Range
    50m / 164ft
  • Lens Type
    Telephoto Zoom
  • Day/Night
    IR-cut filter for day & night function
  • Focal Length
    8-20mm
  • Aperture
    F1.5 - F2.8
  • Connectivity
    RJ45 cable connector for Network/PoE connection
  • Field of View
    15.9° - 38.9° Horizontal
    12.2° - 29.2° Vertical
    18° - 46° Diagonal
  • Power Input
    IEEE 802.3af PoE
    IEEE 802.3at PoE - Extended temperature range
  • Iris
    P-Iris
  • Power Consumption
    12W
    20W - Extended temperature range
  • Weight
    1024g / 36.12oz
  • Certifications
    FCC, IP67, IK10 vandal resistance, IEC60950-1, NDAA
  • Operating Temperature
    -20°C - 50°C (-4°F - 122°F), PoE 802.3af
    -40°C - 50°C (-40°F - 122°F), PoE 802.3at
  • Humidity
    90%
  • Included Accessories
    Quick installation guide, screw packs, mount plate, 2 mounting templates, water-proof connectors, junction box adapter, T8, T25 hand tool
  • LED Indicator
    System power and status indicator

Accessory List

  • INJ-POE-PLUS 802.3at PoE Injector

    Power over Ethernet (PoE) injector for powering Verkada cameras from a non-PoE enabled network connection

  • ACC-MNT-9 Verkada Pole Mount, 2nd Generation

    Attaches ACC-MNT-2 or ACC-MNT-3 to a pole. Supports Verkada's Bullet Series.
