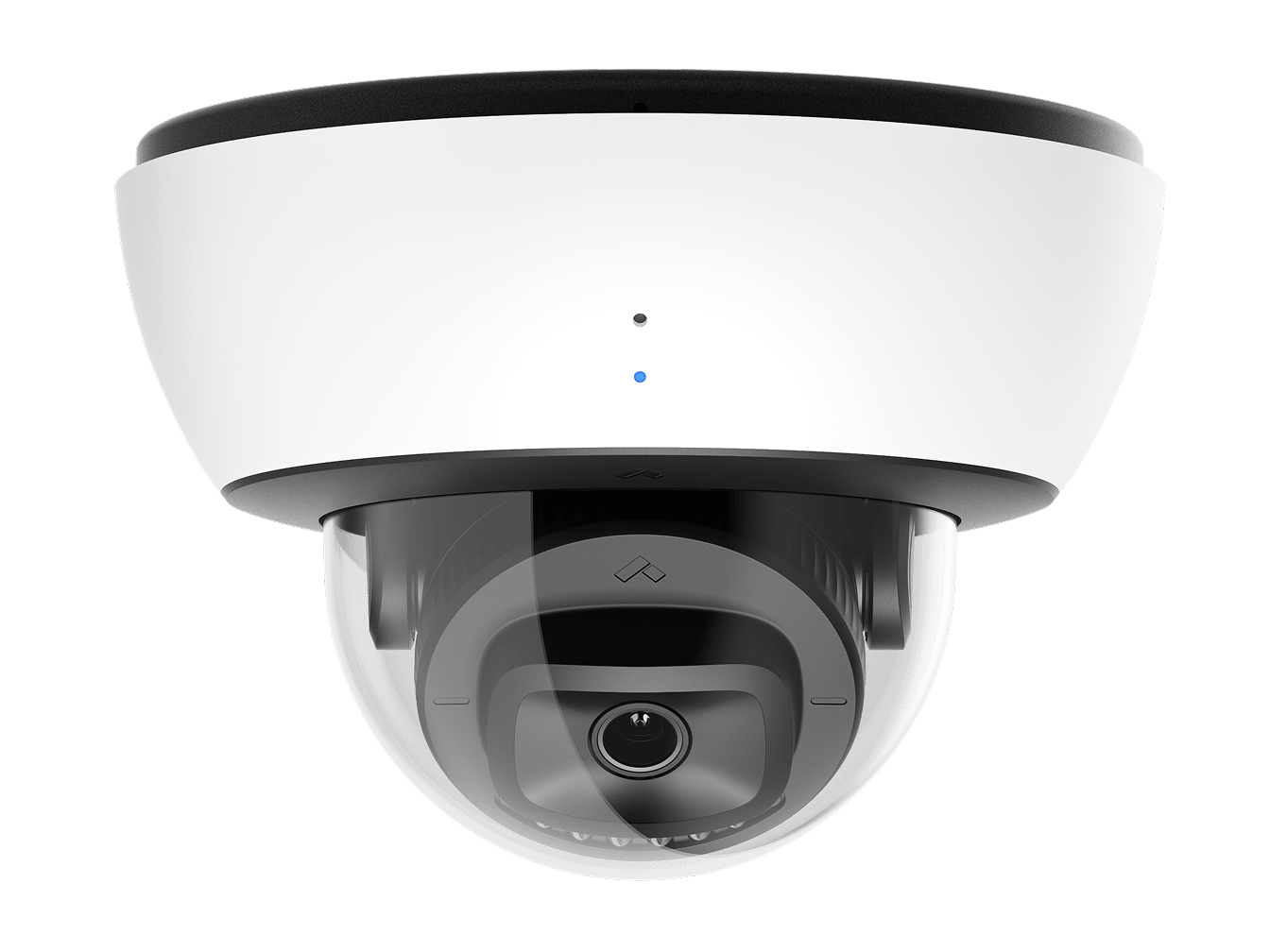

CD43 Dome
Reliable 5MP Coverage for Clear Monitoring of Indoor Spaces
Vertical: 73° (66°)
Diagonal: 130° (99°)
Pan: 360°
Rotation: 350°
0 lux with IR Illuminators on
Card: MicroSD, SDXC
Standard quality (SQ): Up to 600 Kbps
Without IR: IEEE 802.3af Type 1 PoE
Extended temperature range: N/A
Without IR: 37V-57V, 0.23A-0.15A, Max 8.5W, Typical 5.8W
Extended temperature range: N/A
RFC 2326
Max concurrent streams: 2
Audio support: Yes
Mount plate: 193g / 6.81oz
Ø: 155.0mm / 6.10in, H: 101.9mm / 4.01in without mount plate
1All our cameras record in "adaptive quality", capturing both standard and high quality streams. Standard quality (SQ) video is stored up to the amount of retention specified by the customer. The amount of high quality video stored on the camera will depend on the amount of motion detected by the camera over time. To learn more, visit our website: https://docs.verkada.com/docs/adaptive-quality-recording-whitepaper.pdf
2Lens Distortion Correction (LDC) crops the sensor field of view to deliver a rectified, undistorted output image.
3Extended temperature range includes operating temperatures below -10°C / 14°F and assumes IR will be enabled.
4Frame rate can be adjusted by support.
Accessories
ACC-MNT-CJBOX-1
Circle Junction Box
Junction box for mounting dome and fisheye cameras
ACC-MNT-LBRAC-1
L-bracket Mount
Compact bracket for mounting camera perpendicular to wall.
ACC-MNT-ARM-1
Arm Mount
Wall mounted extender arm with built in 1.5” female NPT thread.
ACC-MNT-PEND-1
Standard Pendant Cap
Threaded cap features built in 3/4” female NPT and 1.5” male NPT threads.
ACC-MNT-REC-2
Recessed Ceiling Mount
For mounting indoor dome cameras flush in ceilings up to 50mm thick.
ACC-MNT-CLIP-1
Tile Clip
For mounting indoor Dome, Mini and Fisheye cameras to commercial ceiling tile rails from 9/16" to 15/16" wide without the requirement to drill. Customers may still wish to drill a hole to properly conceal the cable.
ACC-MNT-PEND-1
Standard Pendant Cap
Threaded cap features built in 3/4” female NPT and 1.5” male NPT threads.
ACC-MNT-POLE-1
Pole Mount
For mounting cameras to circular poles 2" to 6" in diameter.
ACC-MNT-POLE-1
Pole Mount
For mounting cameras to circular poles 2" to 6" in diameter.
ACC-MNT-LBRAC-1
L-bracket Mount
Compact bracket for mounting camera perpendicular to wall.
ACC-MNT-POLE-1
Pole Mount
For mounting cameras to circular poles 2" to 6" in diameter.
ACC-MNT-ARM-1
Arm Mount
Wall mounted extender arm with built in 1.5” female NPT thread.
ACC-MNT-PEND-1
Standard Pendant Cap
Threaded cap features built in 3/4” female NPT and 1.5” male NPT threads.
ACC-MNT-CORNER-1
Corner Mount
Mount for installing cameras and accessories to external corners.
ACC-MNT-CORNER-1
Corner Mount
Mount for installing cameras and accessories to external corners.
ACC-MNT-LBRAC-1
L-bracket Mount
Compact bracket for mounting camera perpendicular to wall.
ACC-MNT-CORNER-1
Corner Mount
Mount for installing cameras and accessories to external corners.
ACC-MNT-ARM-1
Arm Mount
Wall mounted extender arm with built in 1.5” female NPT thread.
ACC-MNT-PEND-1
Standard Pendant Cap
Threaded cap features built in 3/4” female NPT and 1.5” male NPT threads.
