CD62-E Outdoor Dome

CD62-E Outdoor Dome

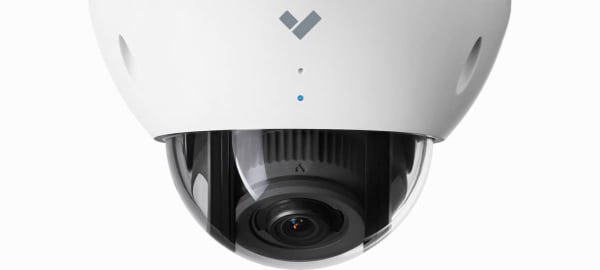

Powerful, Ultra HD 4K outdoor dome with 3x optical zoom and intelligent edge-based video analytics.
  • 4K
    Image Resolution
  • 3 X
    Optical Zoom
  • IP67
    and IK10 Rated
  • 30 M
    IR Range

Product Specifications

  • Image Sensor
    1/2.8″ Progressive CMOS
  • Dimensions
    Ø: 155mm / 6.1in, H: 114.6mm / 4.51in with mount plate
    Ø: 155mm / 6.1in, H: 107.6mm / 4.24in without mount plate
  • Image Resolution
    4K / 3840 x 2160
  • IR Range
    30m / 98ft
  • Lens Type
  • Day/Night
    IR-cut filter for day & night function
  • Zoom
    3x Optical Zoom
  • Focal Length
  • Aperture
    F1.3 - F2.4
  • Connectivity
    10/100Mbps RJ-45 cable connector for Network/PoE connection
  • Field of View
    41° to 116° Horizontal
    23° to 62° Vertical
    47° to 136° Diagonal
  • Power Input
    IEEE 802.3af PoE
    IEEE 802.3at PoE - Extended temperature range
  • Iris
  • Power Consumption
    20W - Extended temperature range
  • Weight
    Camera: 985g / 34.74oz
    Mountplate: 178g / 6.28oz
  • Certifications
    FCC, IP67, IK10 vandal resistance, IEC60950-1, NDAA
  • Operating Temperature
    -20°C - 50°C / -4°F - 122°F, PoE 802.3af
    -40°C - 50°C / -40°F - 122°F, PoE 802.3at
  • Humidity
  • Included Accessories
    Quick installation guide, screw pack, alignment sticker, desiccant bag, water-proof connectors, pole mount, conduit adapter
  • LED Indicator
    System power and status indicator

Accessory List

  • ACC-MNT-2 Mounting Arm Kit

    Wall mounted extender arm. Use with Verkada ACC-MNT-1 or ACC-MNT-8 pendant caps.

  • ACC-MNT-3 Wall Mounted L-Shaped Bracket Kit

    Compact bracket for mounting camera perpendicular to wall.

  • ACC-MNT-4 Pole Mount Adapter Kit

    Attaches ACC-MNT-2 or ACC-MNT-3 to a pole.

  • INJ-POE-PLUS 802.3at PoE Injector

    Power over Ethernet (PoE) injector for powering Verkada cameras from a non-PoE enabled network connection

  • ACC-MNT-7 Angle Mount Kit

    30 degree angled mount for improved field of view.

  • ACC-MNT-8 Pendant Cap Mount Kit

    Threaded cap that attaches to the rear of Camera. Use with Verkada ACC-MNT-2 mounting arm Built-in 3/4” NPT female and 1.5” NPT male piping connector.

  • ACC-MNT-9 Verkada Pole Mount, 2nd Generation

    Attaches ACC-MNT-2 or ACC-MNT-3 to a pole. Supports Verkada's Bullet Series.

  • ACC-MNT-10 Corner Mount

    Versatile bracket for mounting a range of accessories and cameras on corners.
