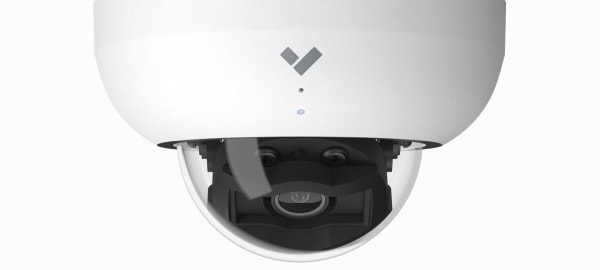

CM41 Mini Dome

CM41 Mini Dome

With a small form factor and high-quality 5MP image resolution, this mini dome can easily be installed in any indoor environment.
  • 5 MP
    Image Resolution
  • 128°
    Diagonal Field of View
  • 15 M
    IR Range

Product Specifications

  • Image Sensor
    1/2.8" Progressive CMOS
  • Dimensions
    Diameter: 100mm / 3.94in
    Height: 63mm / 2.48in
  • Image Resolution*
    5MP (2688 x 1944)
  • IR Range
    15m / 49 ft
  • Onboard Storage
    From 128GB to 2TB
  • Lens Type
  • Day/Night
    IR-cut filter for day & night function
  • Focus
  • Focal Length
  • Aperture
  • Connectivity
    10/100Mb RJ-45 cable connector for Network/PoE connection
  • Field of View
    97° Horizontal
    71° Vertical
    128° Diagonal
  • Power Input
    IEEE 802.3af PoE
  • Iris
  • Power Consumption
  • Weight
    284.6 g / 10.0 oz
  • Certifications
    IK08 vandal resistance, FCC, ICES, IEC62368, NDAA
  • Operating Temperature
    -10°C - 50°C / 14°F - 122°F
  • Humidity
  • Included Accessories
    Quick installation guide, screw pack
  • LED Indicator
    System power and status indicator
*All of our cameras record footage in adaptive quality. Learn More

Accessory List

  • INJ-POE-PLUS 802.3at PoE Injector

    Power over Ethernet (PoE) injector for powering Verkada cameras from a non-PoE enabled network connection

  • ACC-MNT-5 Mini Pendant Cap Mount Kit

    Two-piece threaded cap for mounting a Mini camera to 3/4” NPT threaded drop pipe.

  • ACC-MNT-6 Mini Camera Junction Box Kit

    For mounting a Mini camera to a standard junction box. Includes a plastic cover for aesthetic appeal.
