Enhanced resolution and a small form factor that fits in any space.

D40 Mini

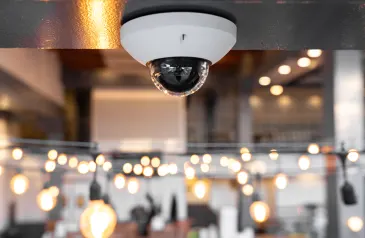

The D40 Mini is designed for flexibility without compromising on image quality. With a small form factor and magnetic base, this mini dome can easily be installed in any indoor environment.
  • 5 MP
    Image Resolution
  • 128°
    Diagonal Field of View
  • 15 M
    IR Range

Product Specifications

  • Image Sensor
    1/2.7" Progressive CMOS
  • Image Resolution
    2688 x 1944 (5MP)
  • Lens Type
  • Focus
  • Focal Length
    f = 2.8mm
  • Aperture
  • Iris
  • Horizontal Field of View
  • Vertical Field of View
  • Diagonal Field of View
  • Shutter Speed
    1/5 sec. to 1/16000 sec
  • Day/Night
    IR-cut filter for day & night function
  • IR Range
    15 meters in low light conditions
  • LED Indicator
    System power and status indicator
  • Connectors
    RJ-45 cable connector for Network/PoE connection
  • Power Input
    IEEE 802.3af PoE
  • Power Consumption
  • Dimensions
    Diameter: 100mm / 3.94in Height: 63mm / 2.48in
  • Weight
    284.6g / 10.0oz
  • Safety Certifications
    IK08 vandal resistance, FCC, ICES, IEC62368
  • Operating Temperature
    -10°C - 50°C (14°F - 122°F)
  • Humidity
  • Included Accessories
    Setup guide, screw pack

Accessory List

  • INJ-POE-PLUS 802.3at PoE Injector

    Power over Ethernet (PoE) injector for powering Verkada cameras from a non-PoE enabled network connection

  • ACC-MNT-5 Mini Pendant Cap Mount Kit

    Two-piece threaded cap for mounting a Mini camera to 3/4” NPT threaded drop pipe

  • ACC-MNT-6 Mini Camera Junction Box Kit

    For mounting a Mini camera to a standard junction box. Includes a plastic cover for aesthetic appeal

A Modern Camera Solution

Features that strengthen enterprise security and streamline surveillance management.
  • 01

    Centralized Management

    Gain visibility of all cameras with a single, easy-to-use platform.

  • 02

    Smart Features

    Everything you need to easily manage and monitor footage.

  • 03

    Remote Access

    Securely access cameras from any location, across all devices.

  • Floor Plan View

    Manage cameras across any number of locations and levels with floor plan view, and pin cameras to precise locations.

  • People & Car Detection

    With activity-based indexing, Verkada logs object-specific activities and alerts users of unusual motion in frame.

  • Share Feeds Instantly

    Share live links and get footage in the right hands without having to open ports or download supporting software.

Simple Setup


Line up blue notches on camera body and magnetic mount plate. Place over center pin and twist to secure.


Connect the camera to a Power over Ethernet (PoE) port on your network.


Rotate camera body on the mount plate to adjust the pan angle. Tilt and rotate lens for further adjustments.


Route the cable snuggly between the camera base and the mount plate. Place the cover on the camera.
